Create Virtual Private Gateway

Create Virtual Private Gateway (VGW)

ℹ️ Overview

  • A Virtual Private Gateway (VGW) is a key component for Site-to-Site VPN connections.
  • It acts as the AWS-side VPN endpoint.
  • It must be attached to the target VPC before establishing the VPN connection.

Steps to Implement

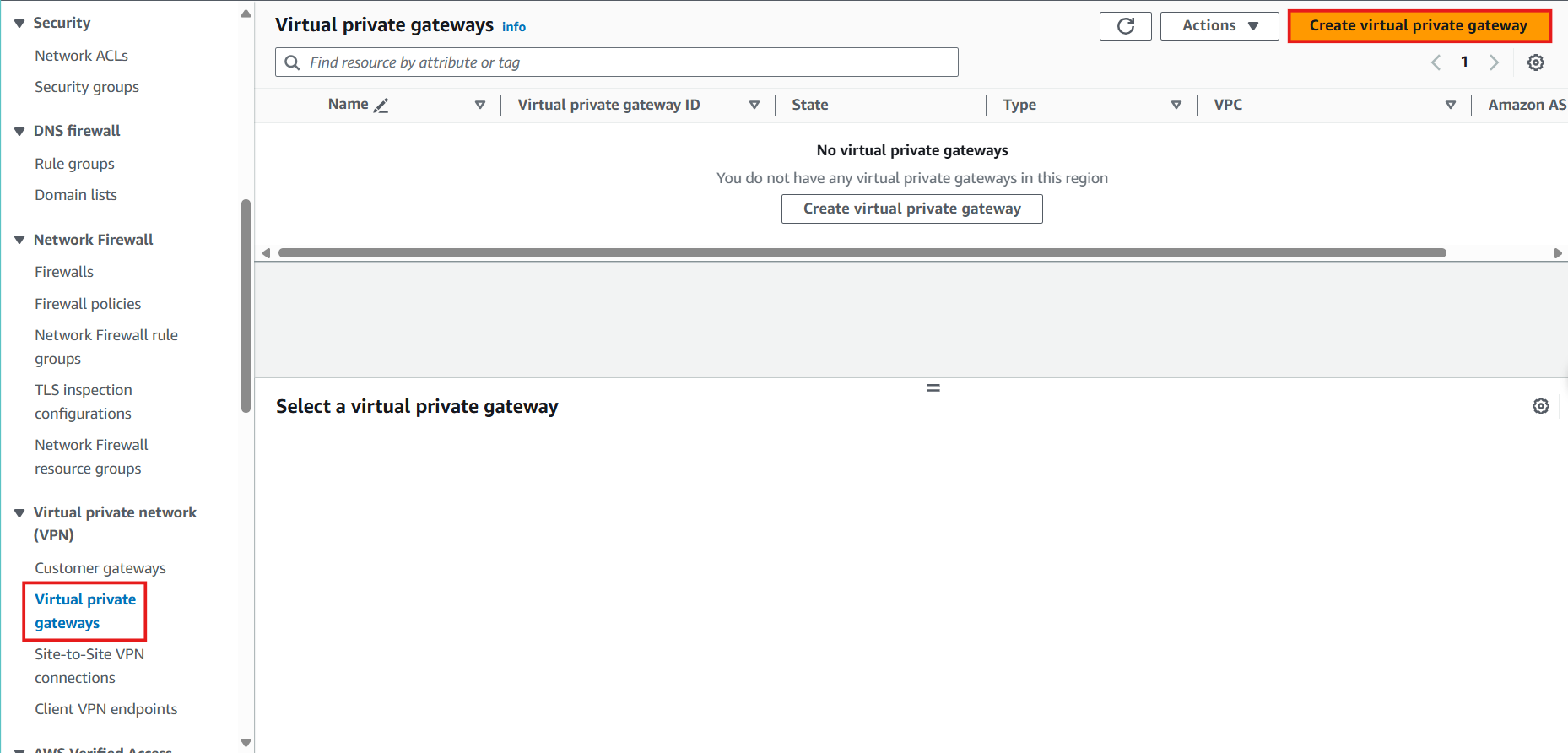

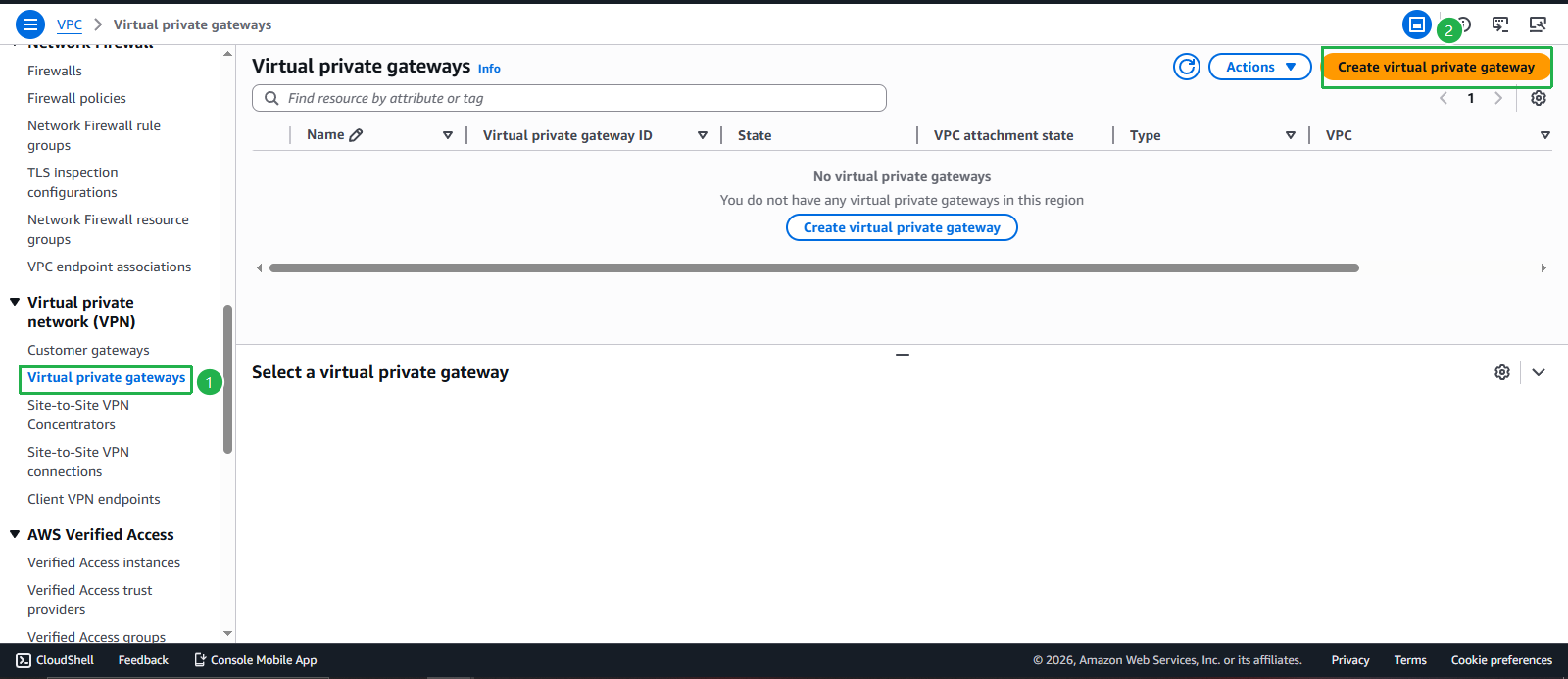

  1. Open the AWS VPC Console
    • Navigate to Virtual Private Gateways
    • Click Create Virtual Private Gateway

Create VPC

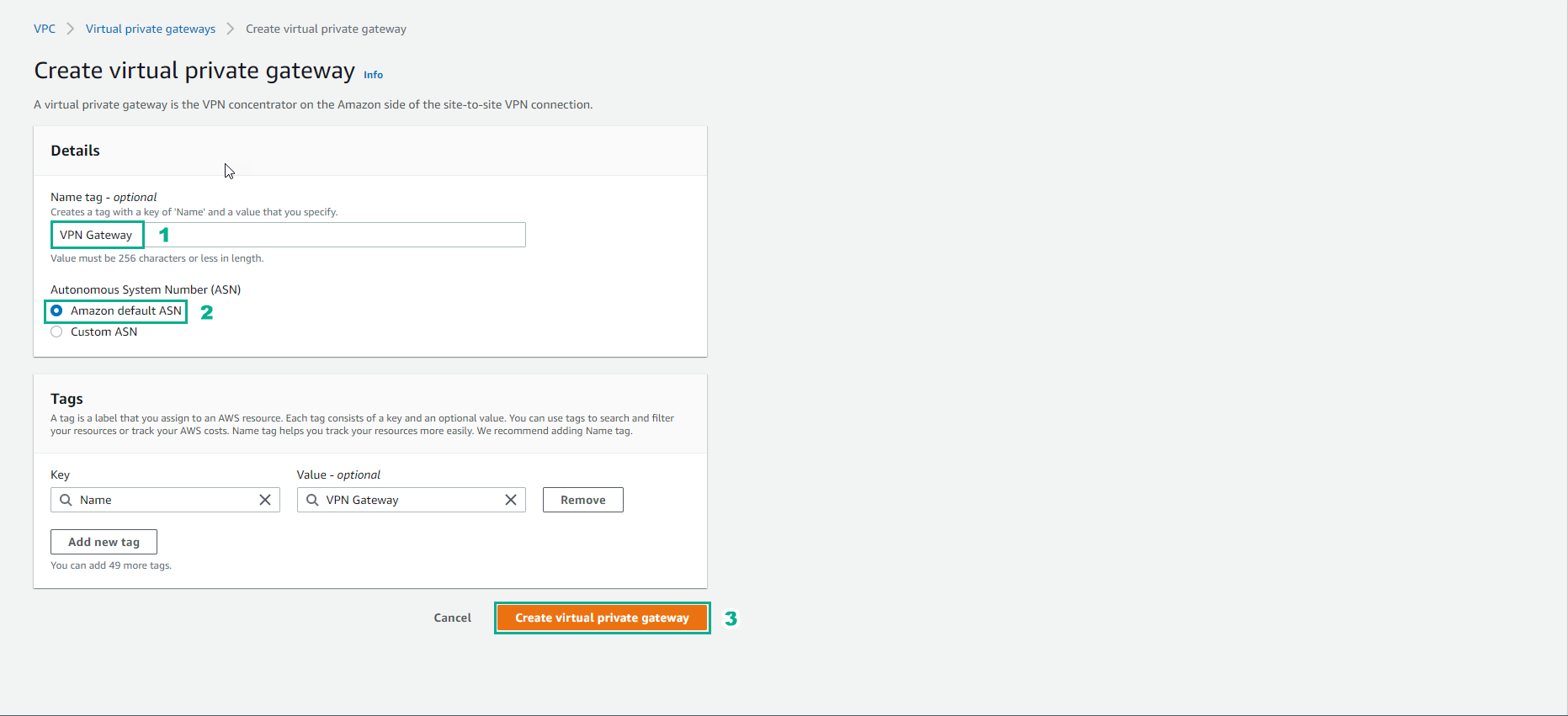

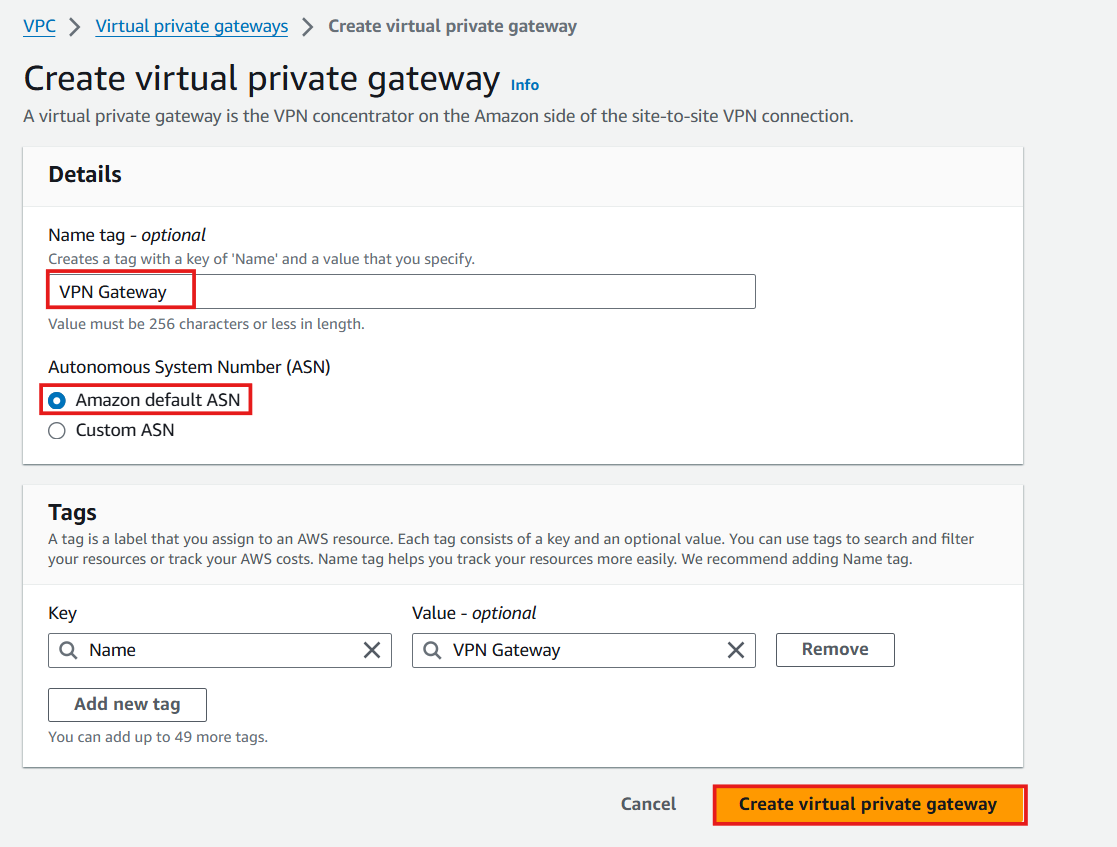

  1. Configure the Virtual Private Gateway

    • Name tag: Enter VPN Gateway
    • ASN: Select Amazon default ASN
    • Click Create virtual private gateway

    💡 ASN Explanation:

    • Amazon default ASN (64512): Suitable for most use cases
    • Custom ASN: Only needed for advanced BGP routing with specific ASN requirements

Create VPC

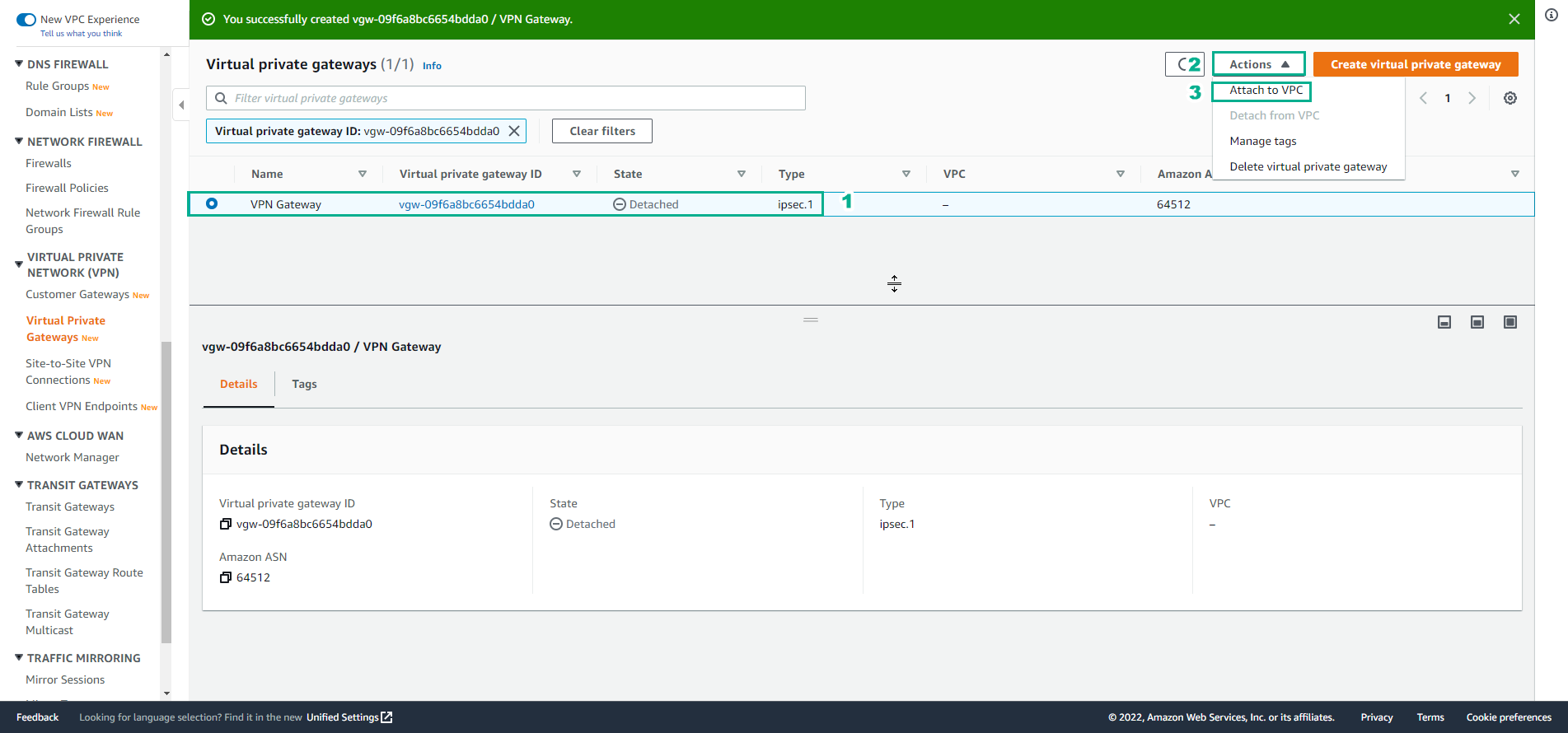

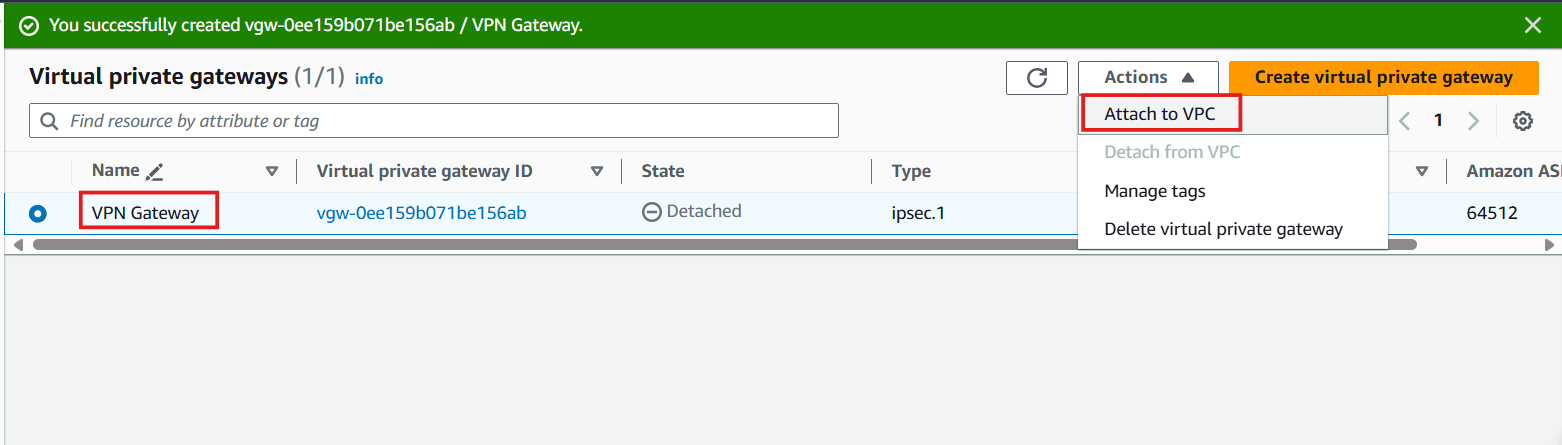

  1. Attach the VGW to your VPC
    • Click Actions
    • Select Attach to VPC

Create VPC

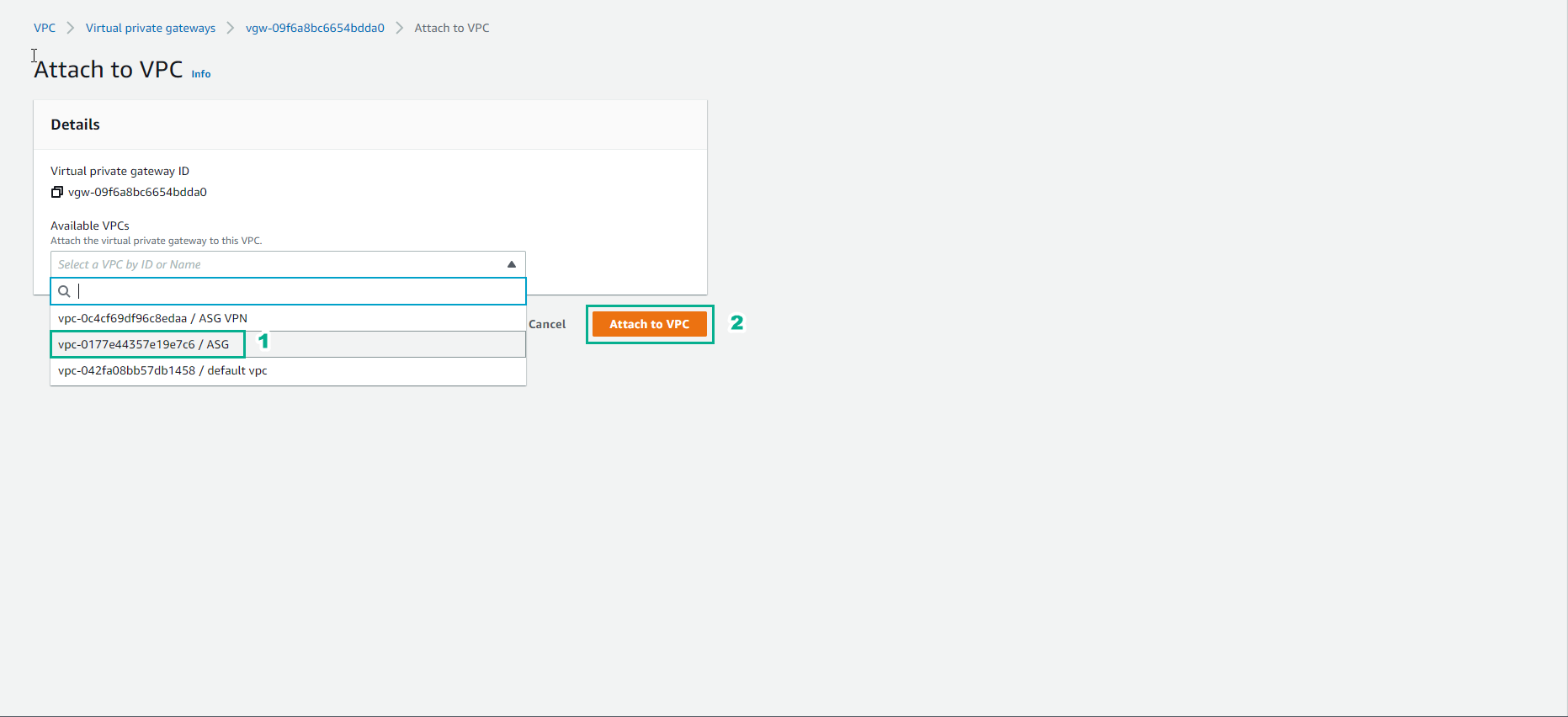

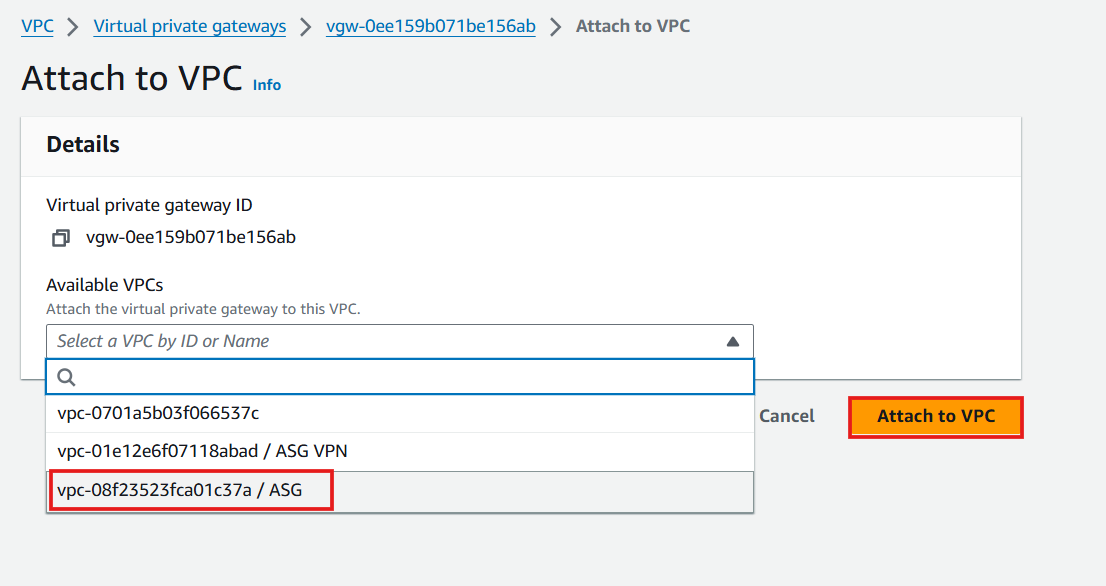

  1. Select the target VPC

    • From the dropdown, choose VPC ASG (10.10.0.0/16)
    • Click Attach to VPC

    ⚠️ Important: Attach to the MAIN VPC (ASG), not the VPN VPC!

Create VPC

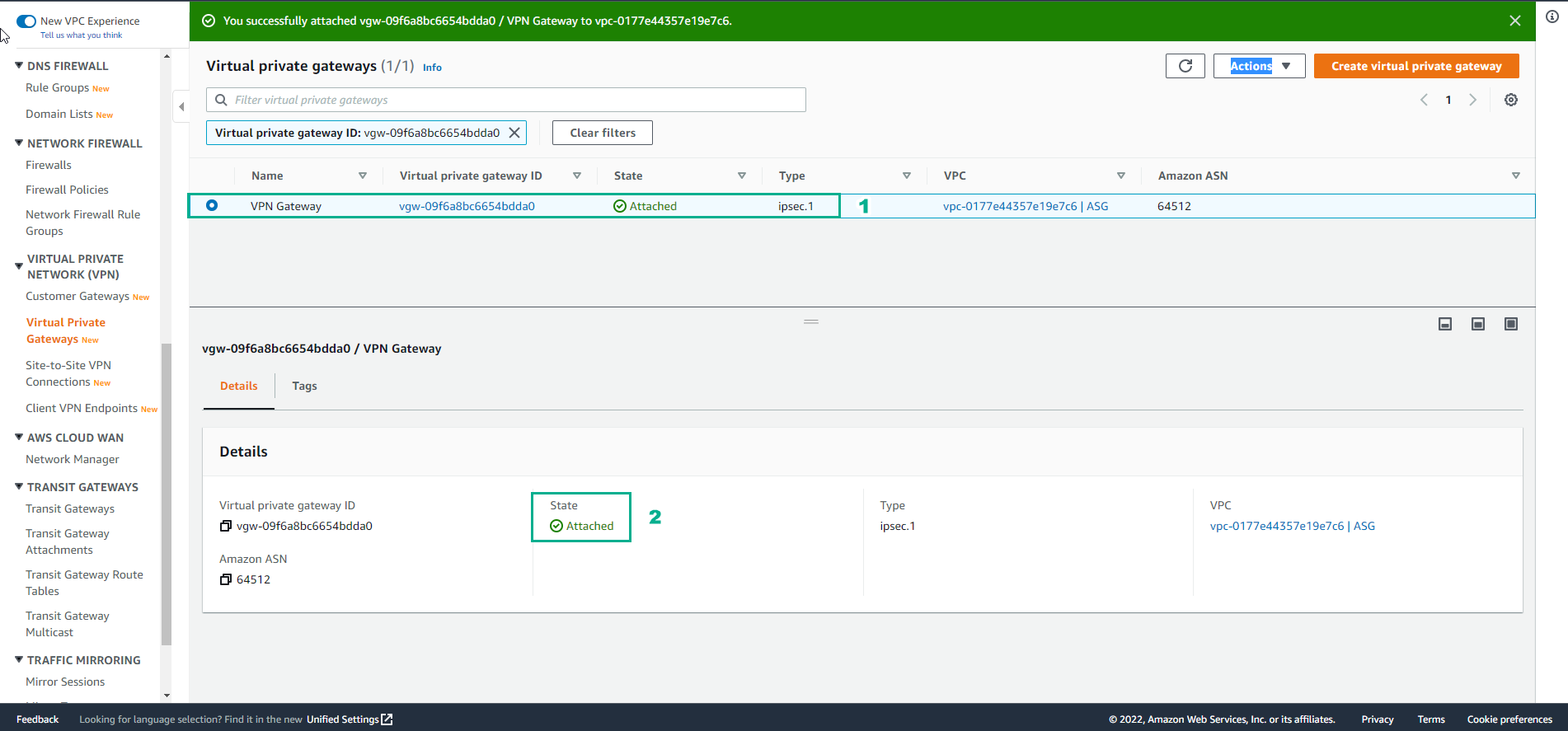

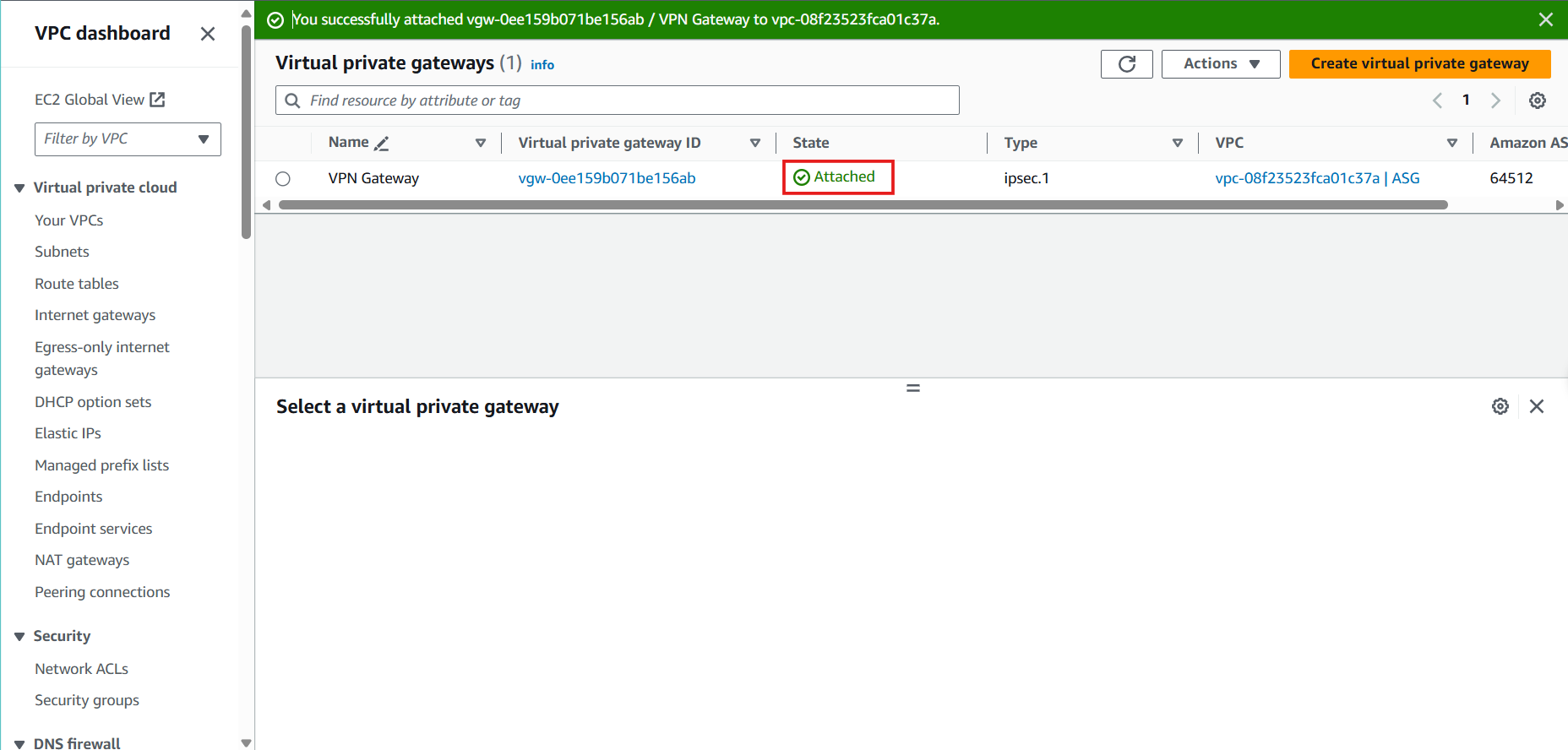

  1. Verify status
    • Check the State field — it should display Attached
    • The VGW is now ready for the next VPN configuration steps

Create VPC

🏗️ Virtual Private Gateway Role

AWS VPC (10.10.0.0/16)
    ↓
Virtual Private Gateway (VGW)
    ↓
VPN Tunnel (IPsec)
    ↓
Customer Gateway (On-premises)

💡 Key Concepts:

  • VGW: AWS-managed VPN concentrator
  • Highly Available: Automatically deployed across multiple AZs
  • Supports: Multiple VPN connections
  • Routing: Can propagate routes to route tables

✅ Completed: Virtual Private Gateway is attached and ready!
