Create EC2 Instance

Deploy EC2 Instance for Customer Gateway

ℹ️ Overview

  • In this section, we will deploy an EC2 instance to act as the Customer Gateway.
  • The instance will be placed in the public subnet of the ASG VPN VPC.
  • A properly configured security group is required for VPN and SSH access.

Create Security Group

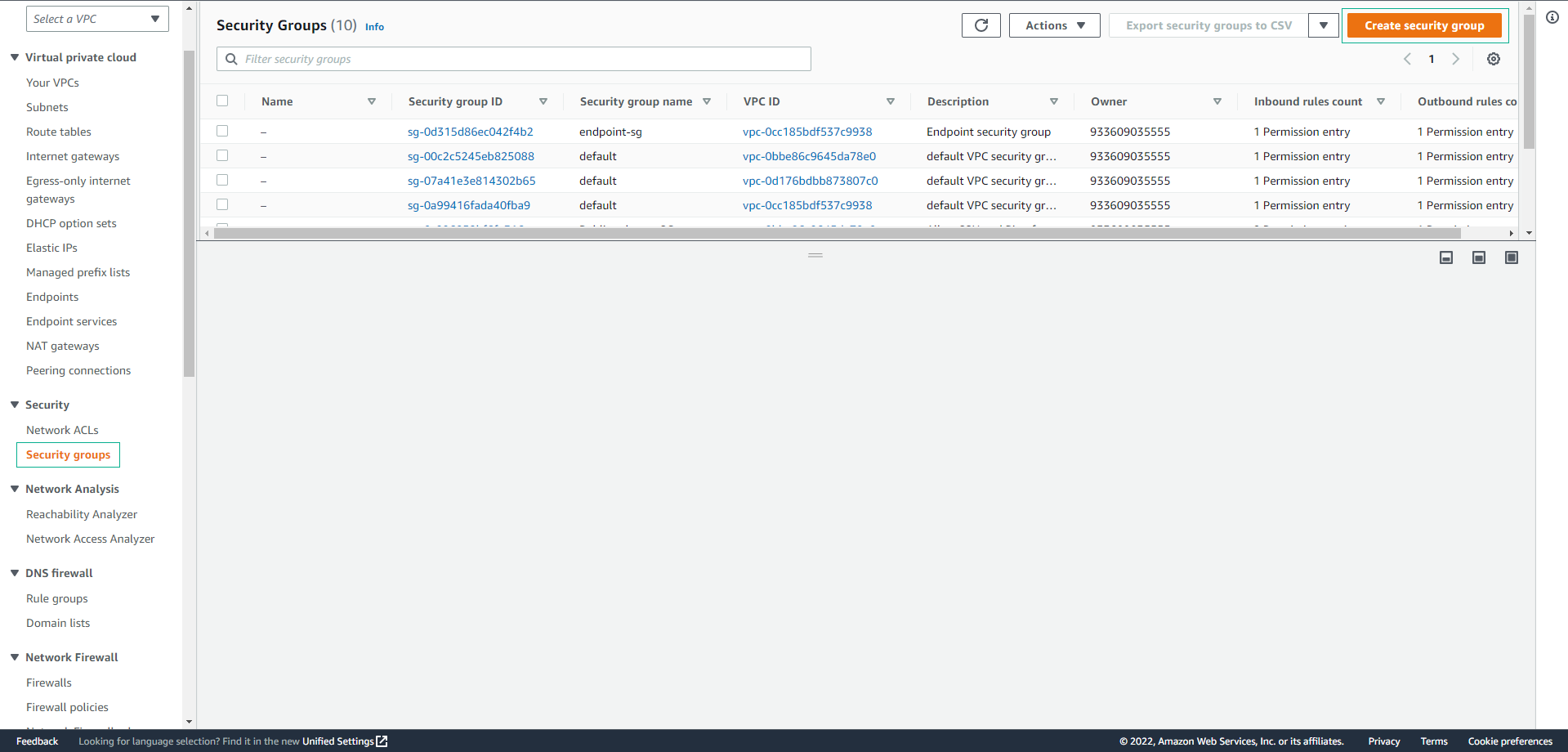

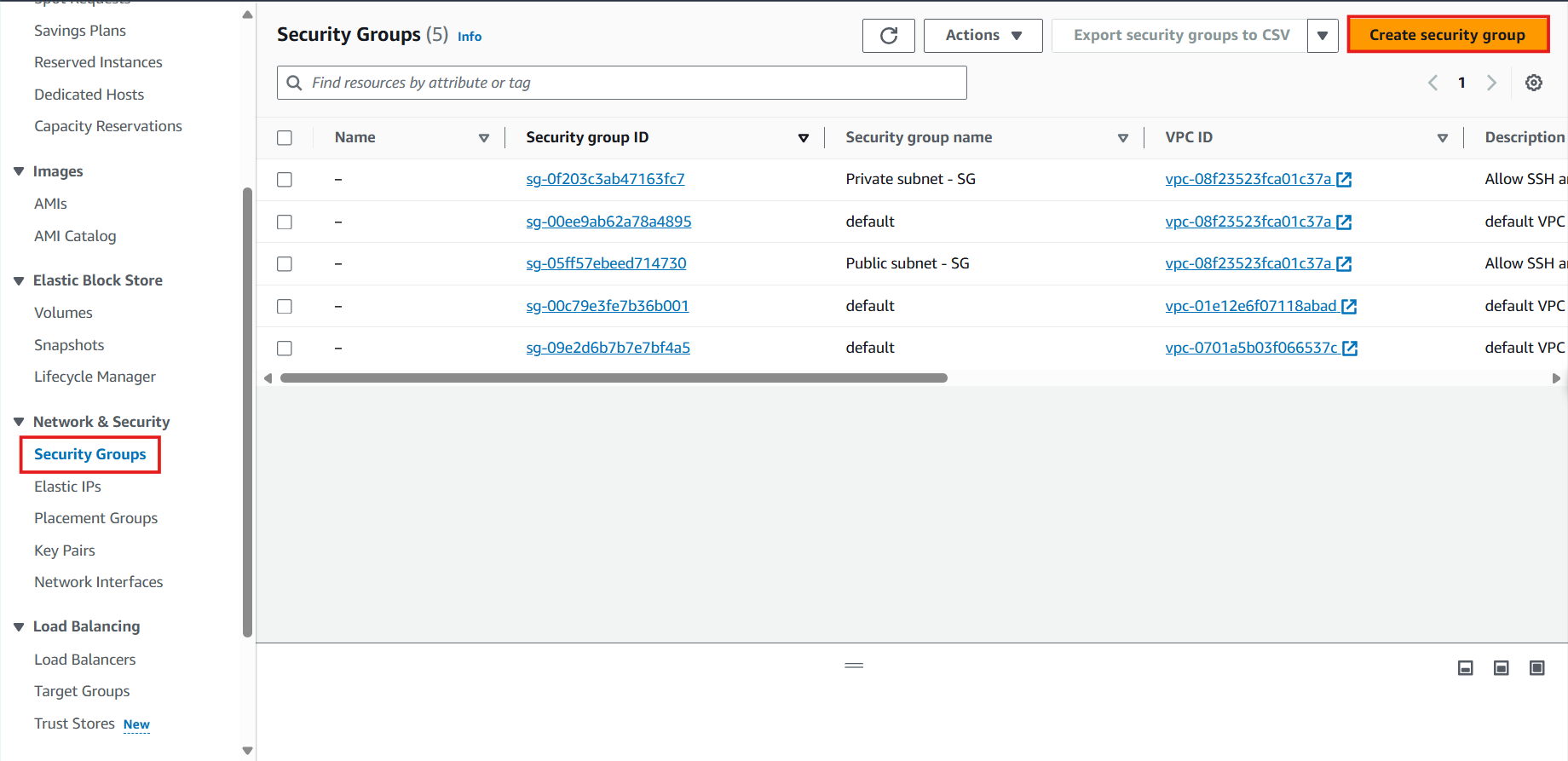

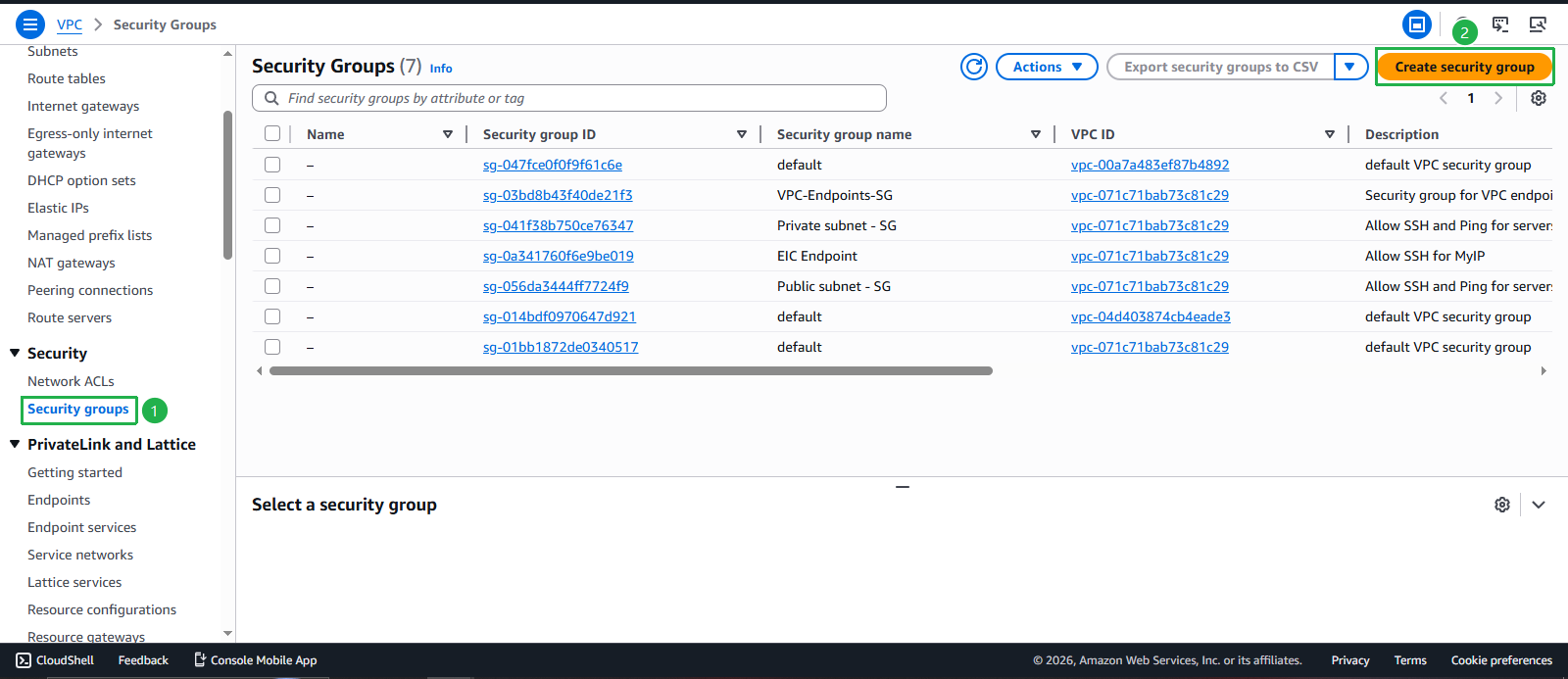

  1. Navigate to the VPC Dashboard
    • Select Security Groups
    • Click Create security group

Create VPC

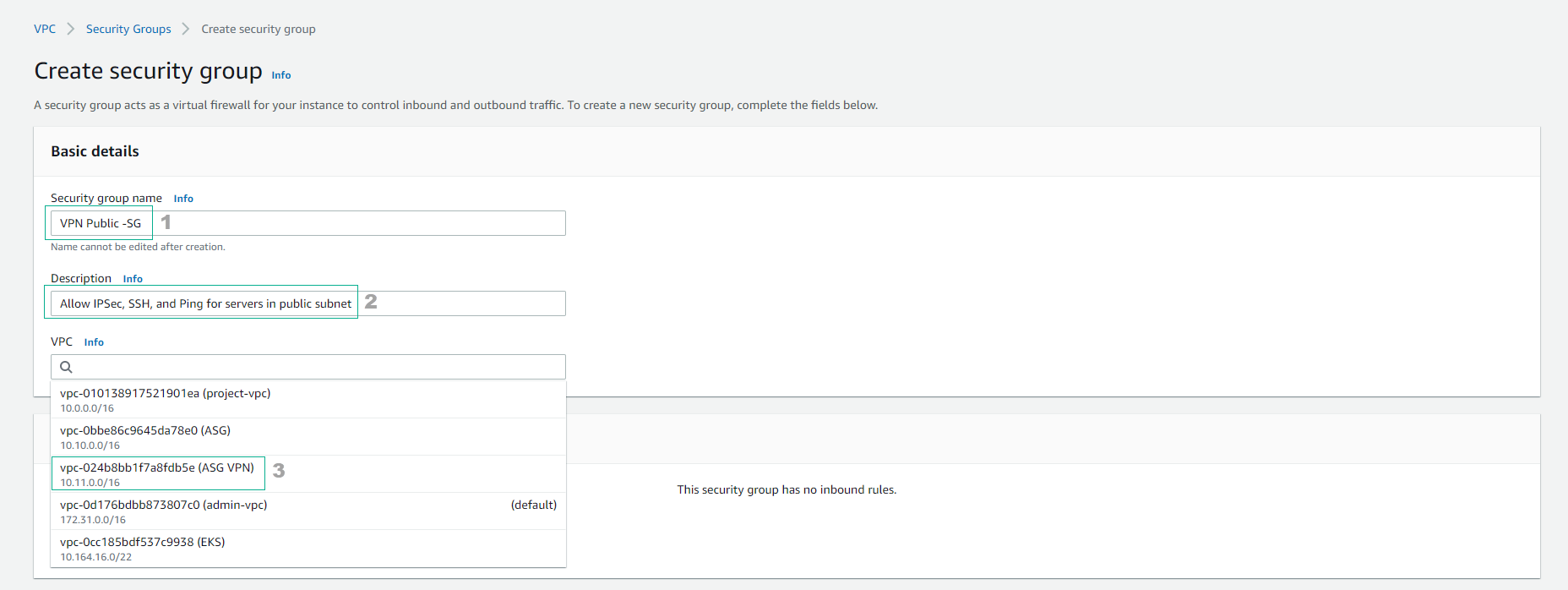

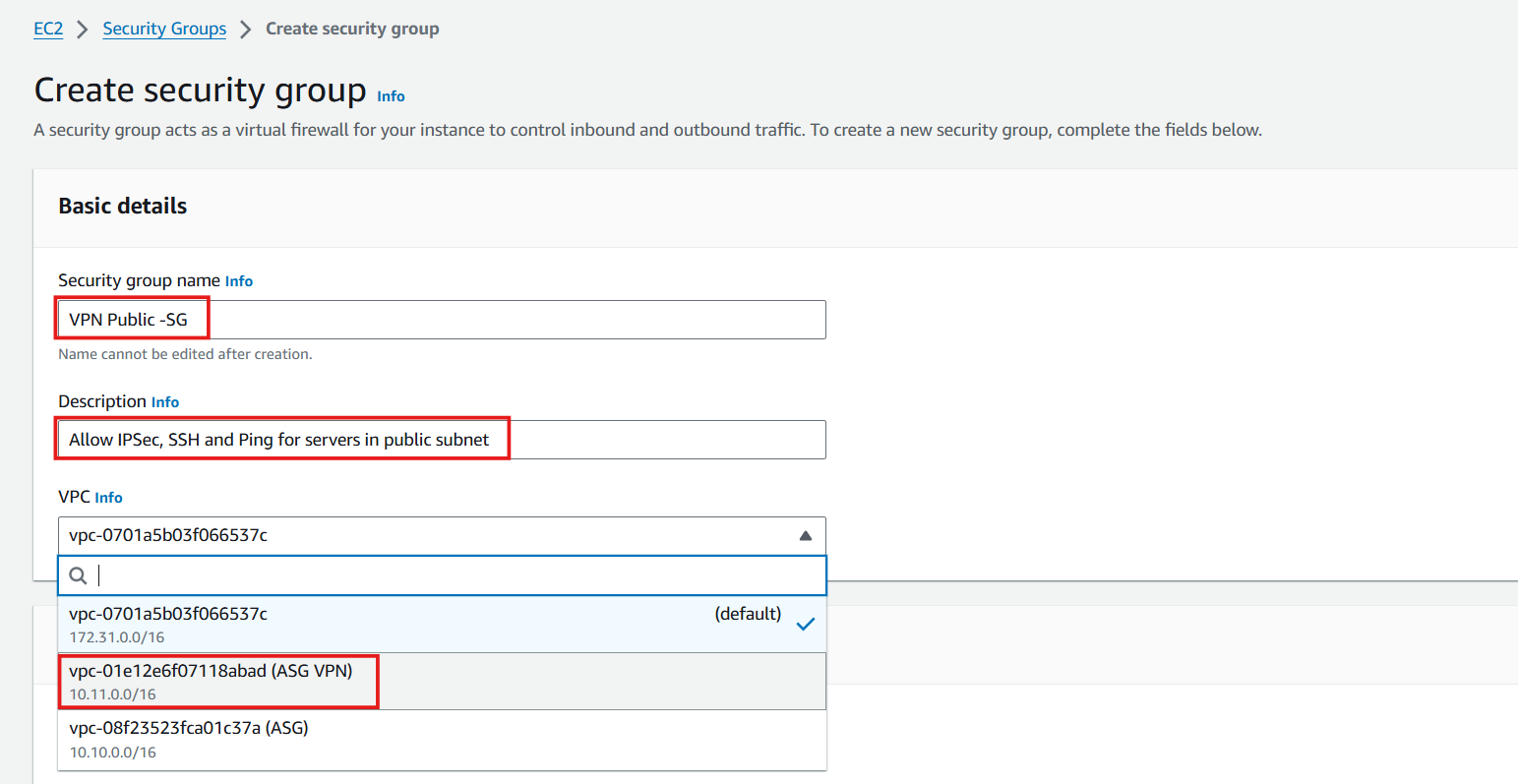

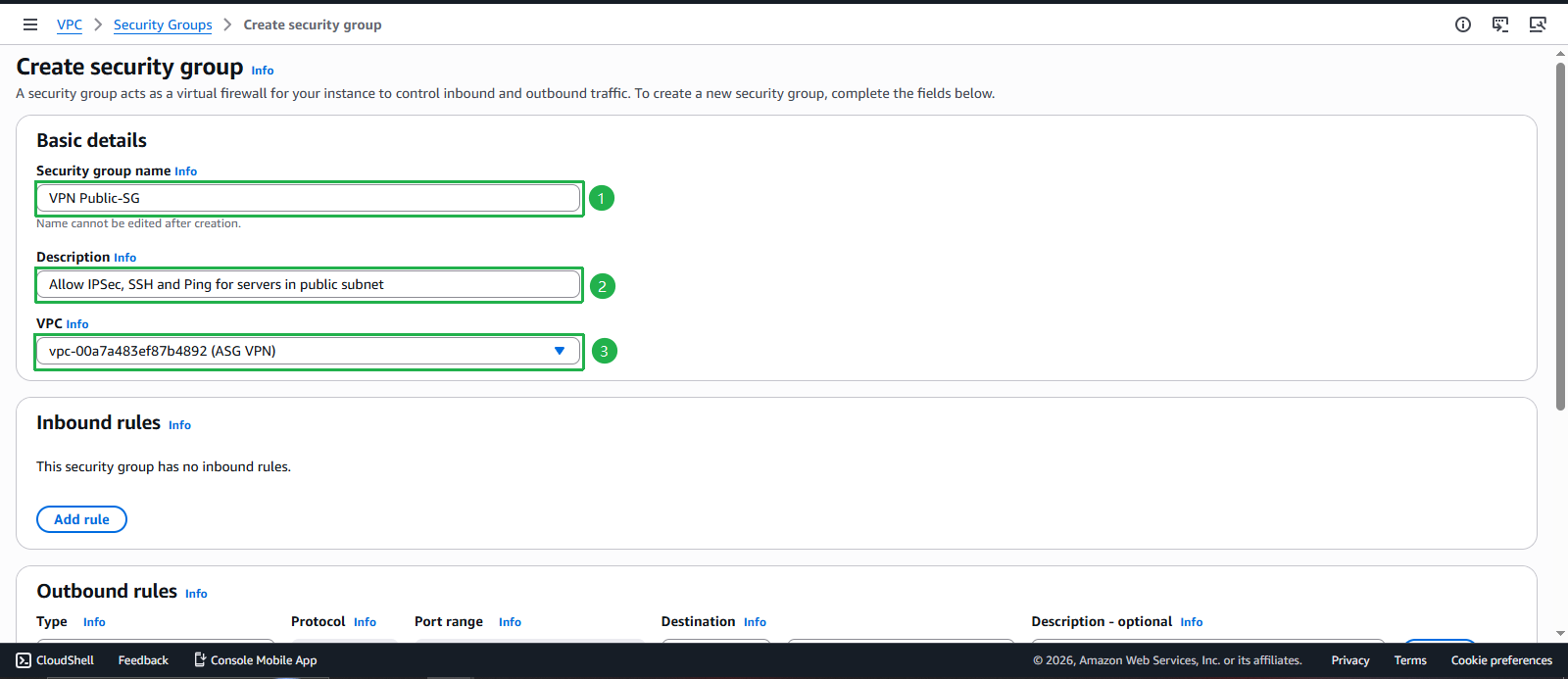

  1. Configure the Security Group
    • Name: Enter VPN Public-SG
    • Description: Enter Allow IPSec, SSH and Ping for servers in public subnet
    • VPC: Select ASG VPN

Create VPC

🔒 Security Rules - Inbound

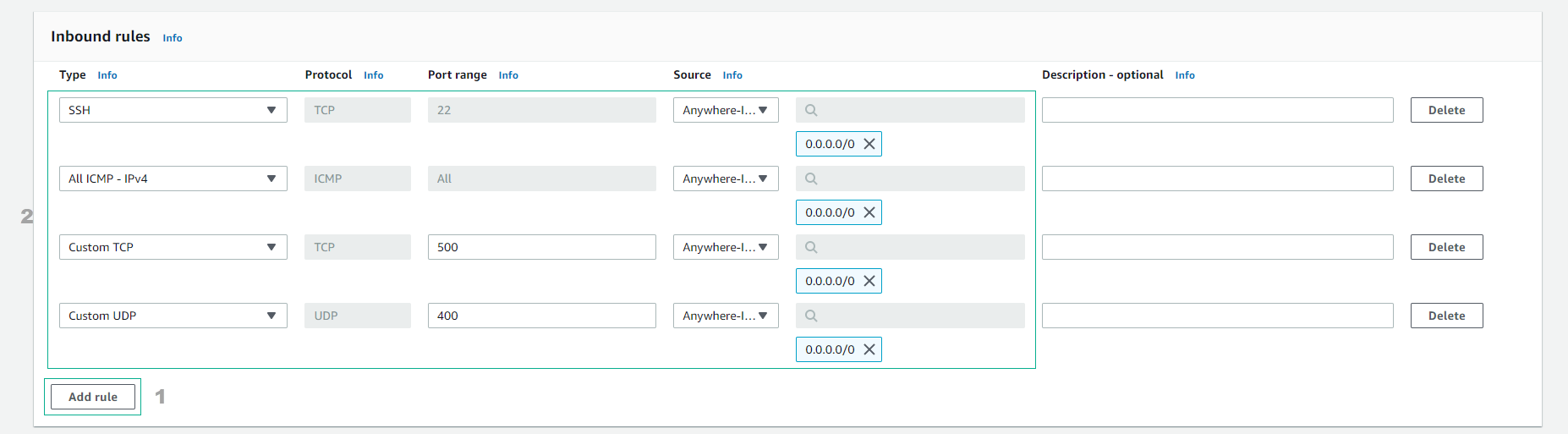

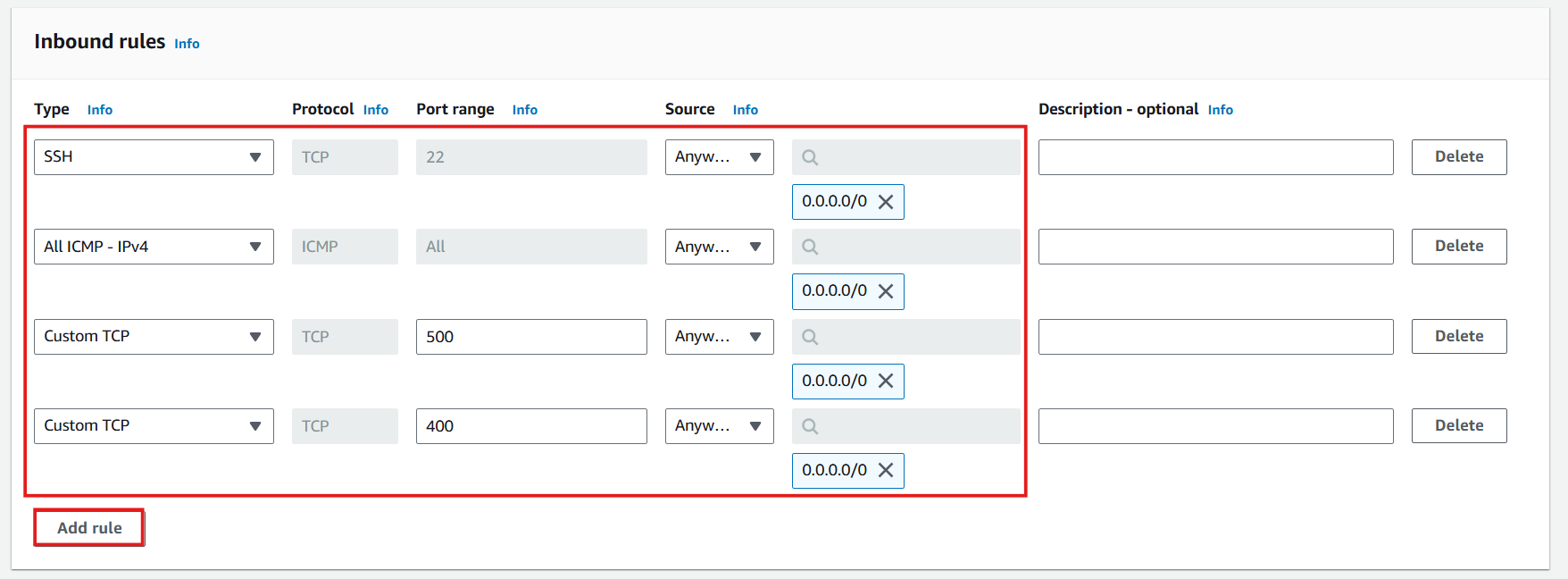

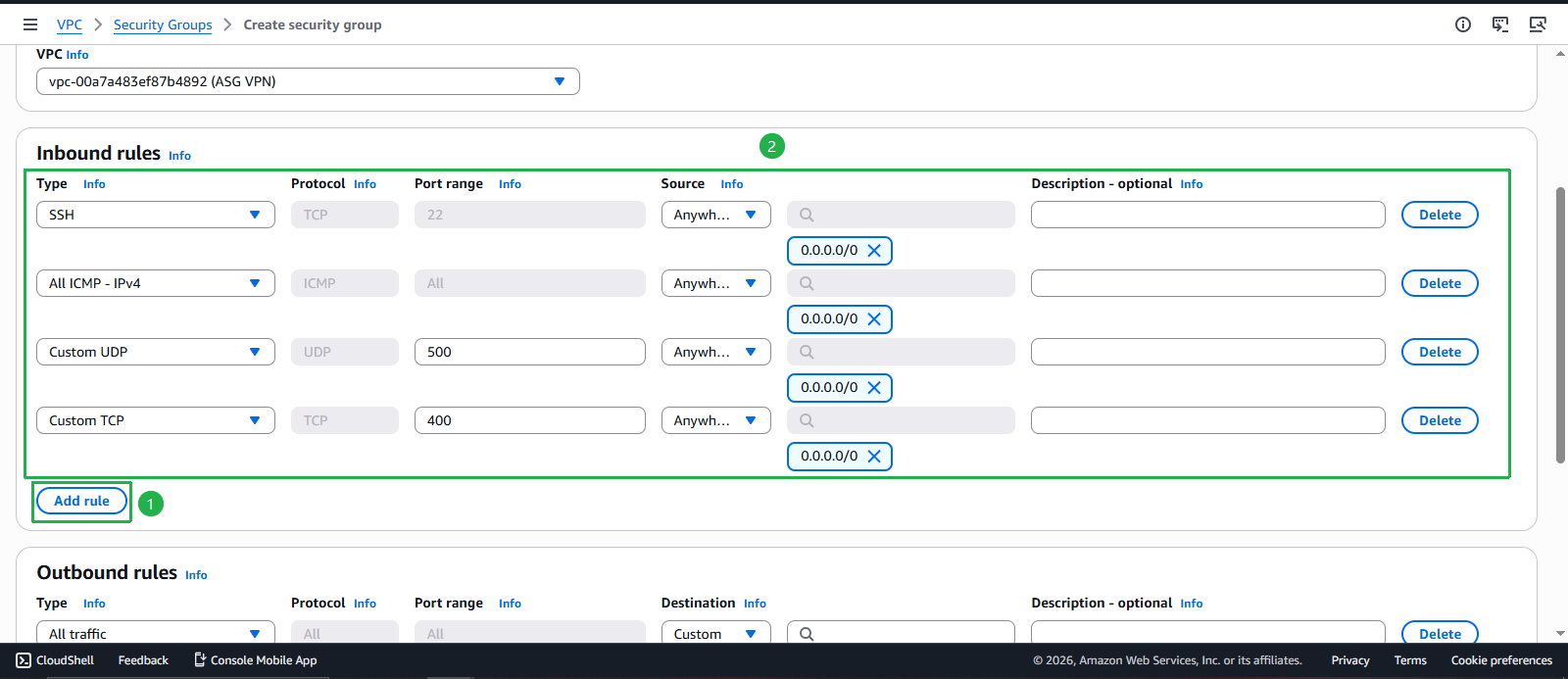

Add the following inbound rules to support VPN and management:

TypeProtocolPortSourcePurpose
SSHTCP22My IPRemote management
ICMPICMPAllAnywherePing testing
Custom UDPUDP500AnywhereIKE (IPsec key exchange)
Custom UDPUDP4500AnywhereNAT-T (IPsec NAT traversal)

💡 Port Explanation:

  • Port 500 (UDP): IKE (Internet Key Exchange) - Establishes VPN tunnel
  • Port 4500 (UDP): NAT-T - IPsec through NAT devices
  • ICMP: Allows ping for connectivity testing

Create VPC

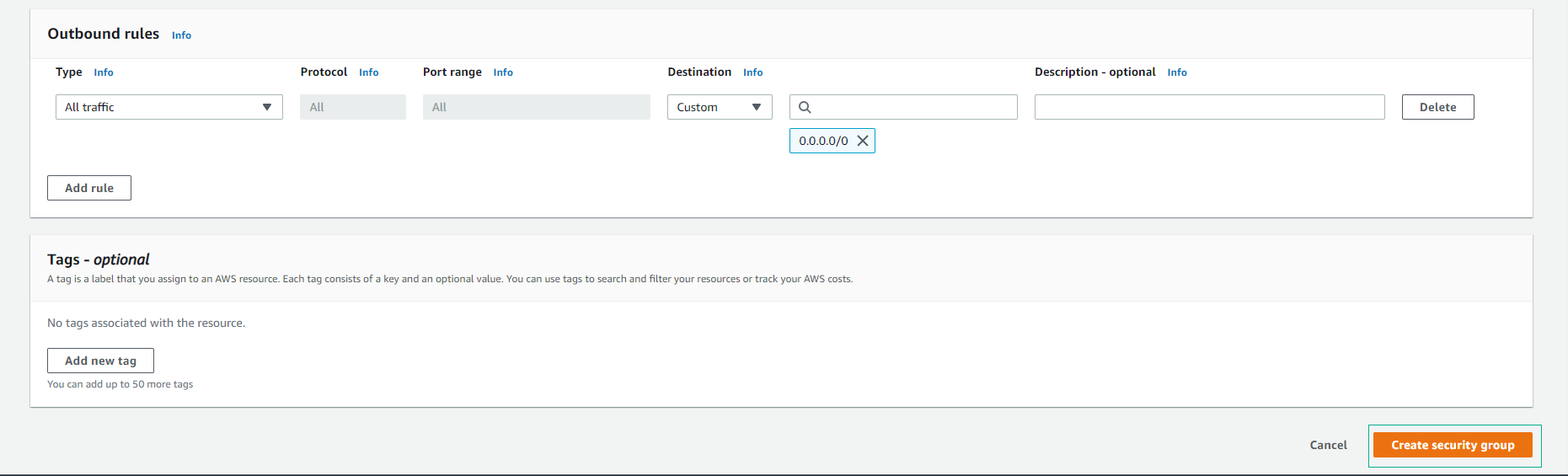

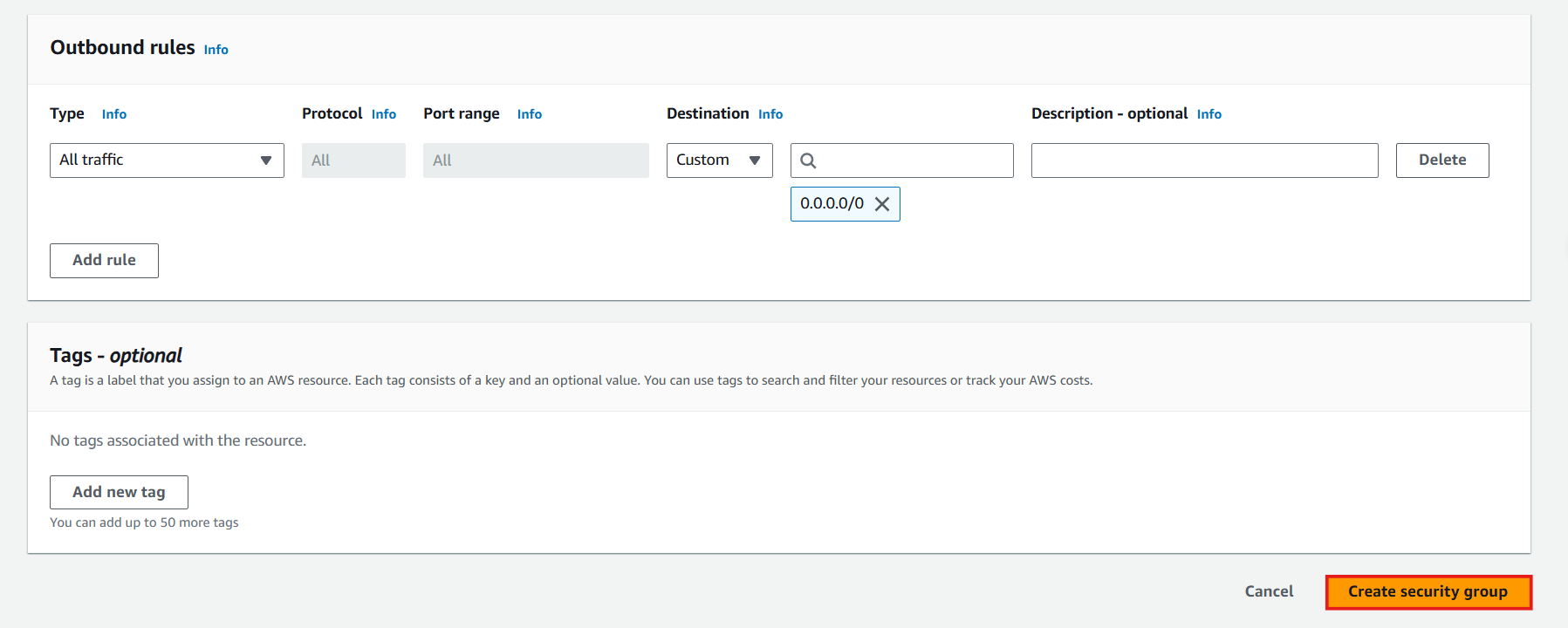

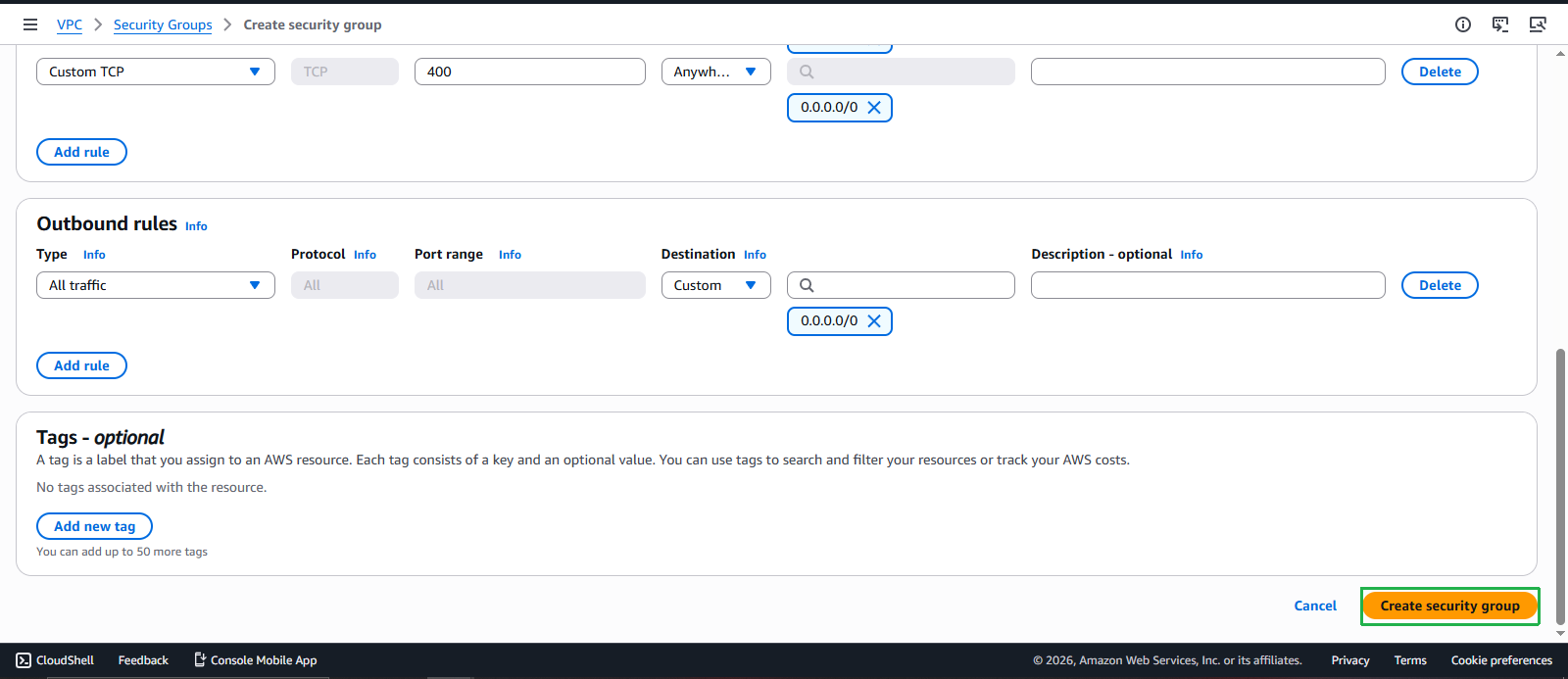

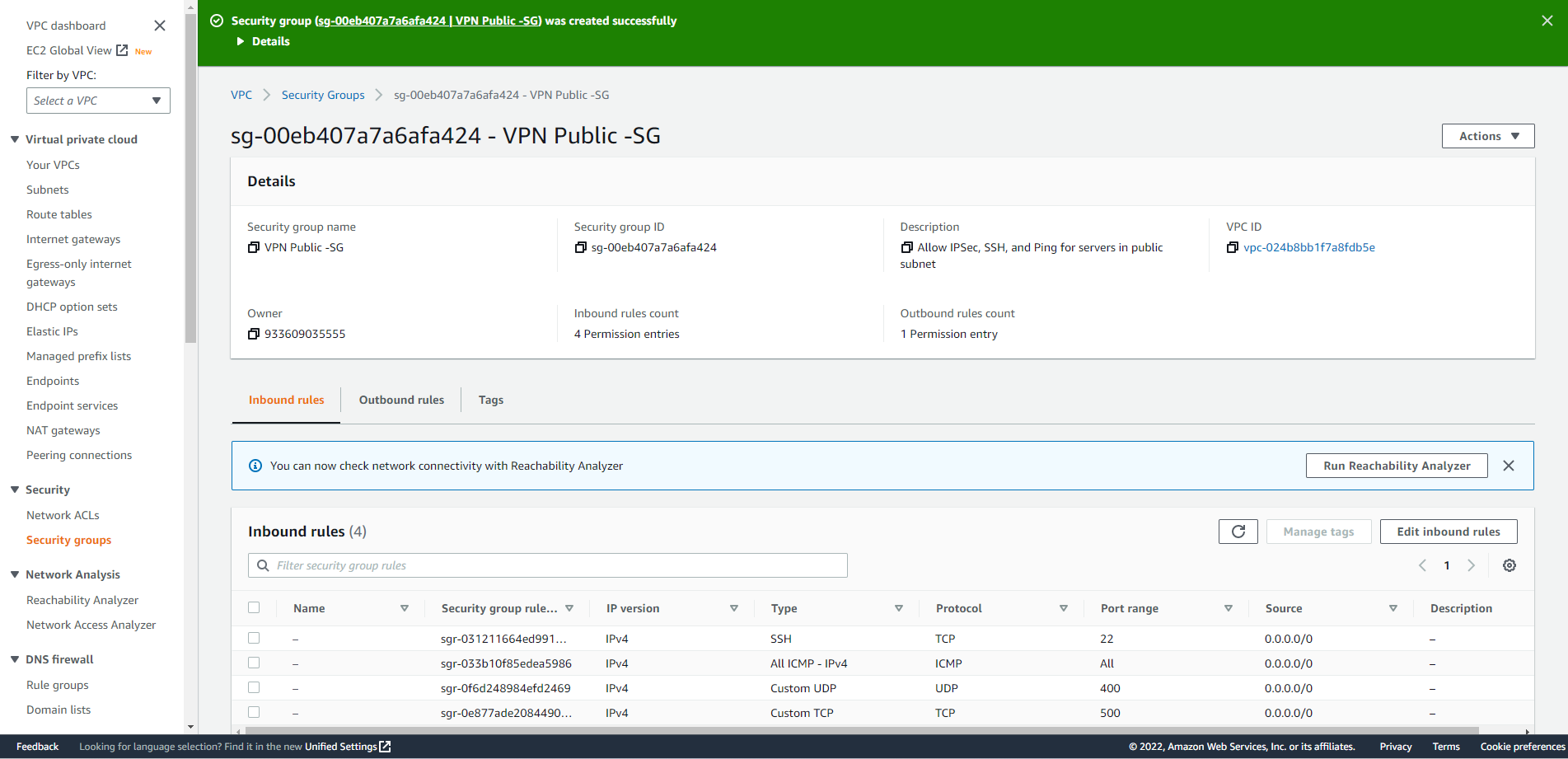

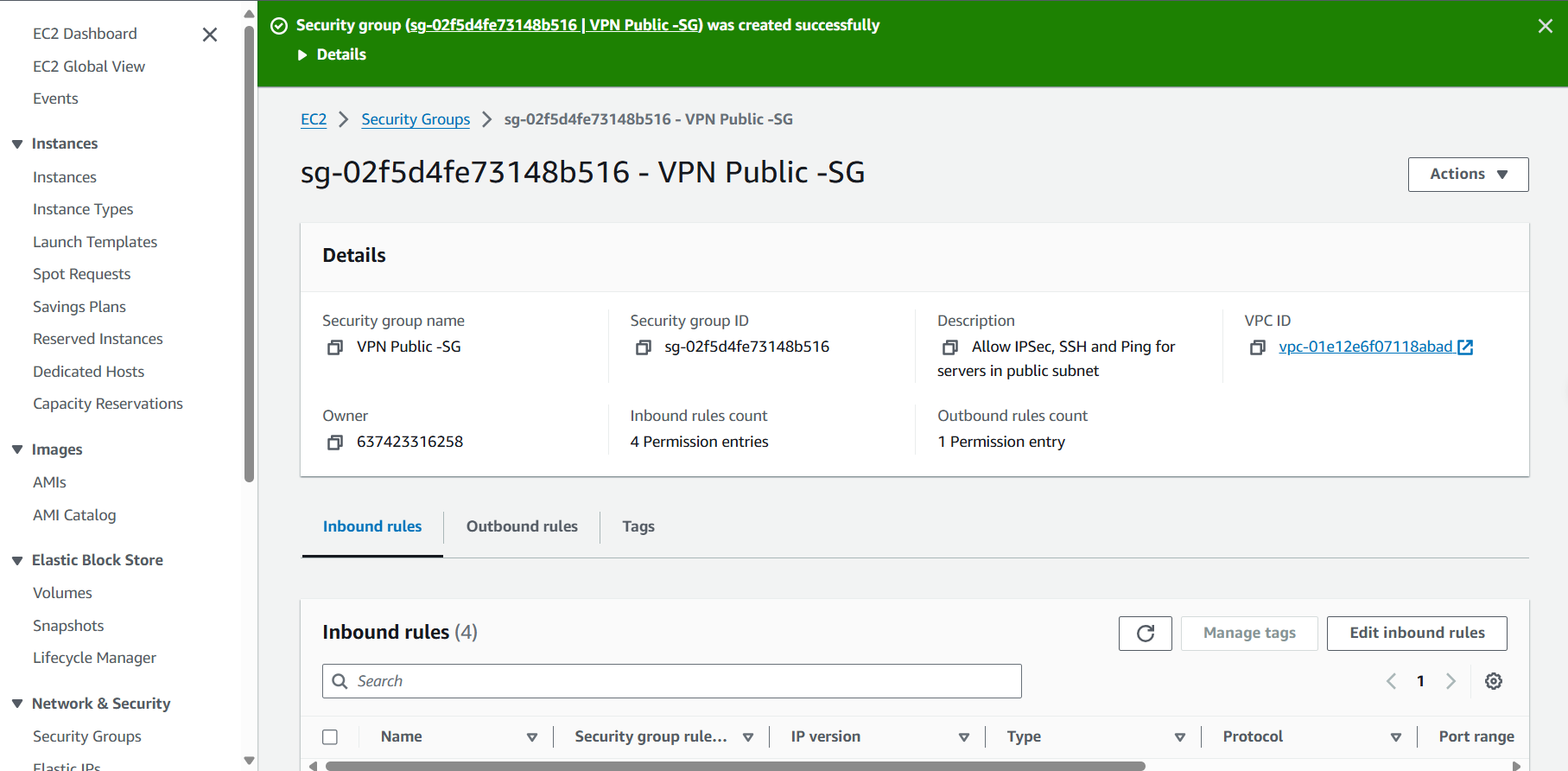

  1. Verify outbound rules and click Create security group

Create VPC

Deploy the EC2 Instance

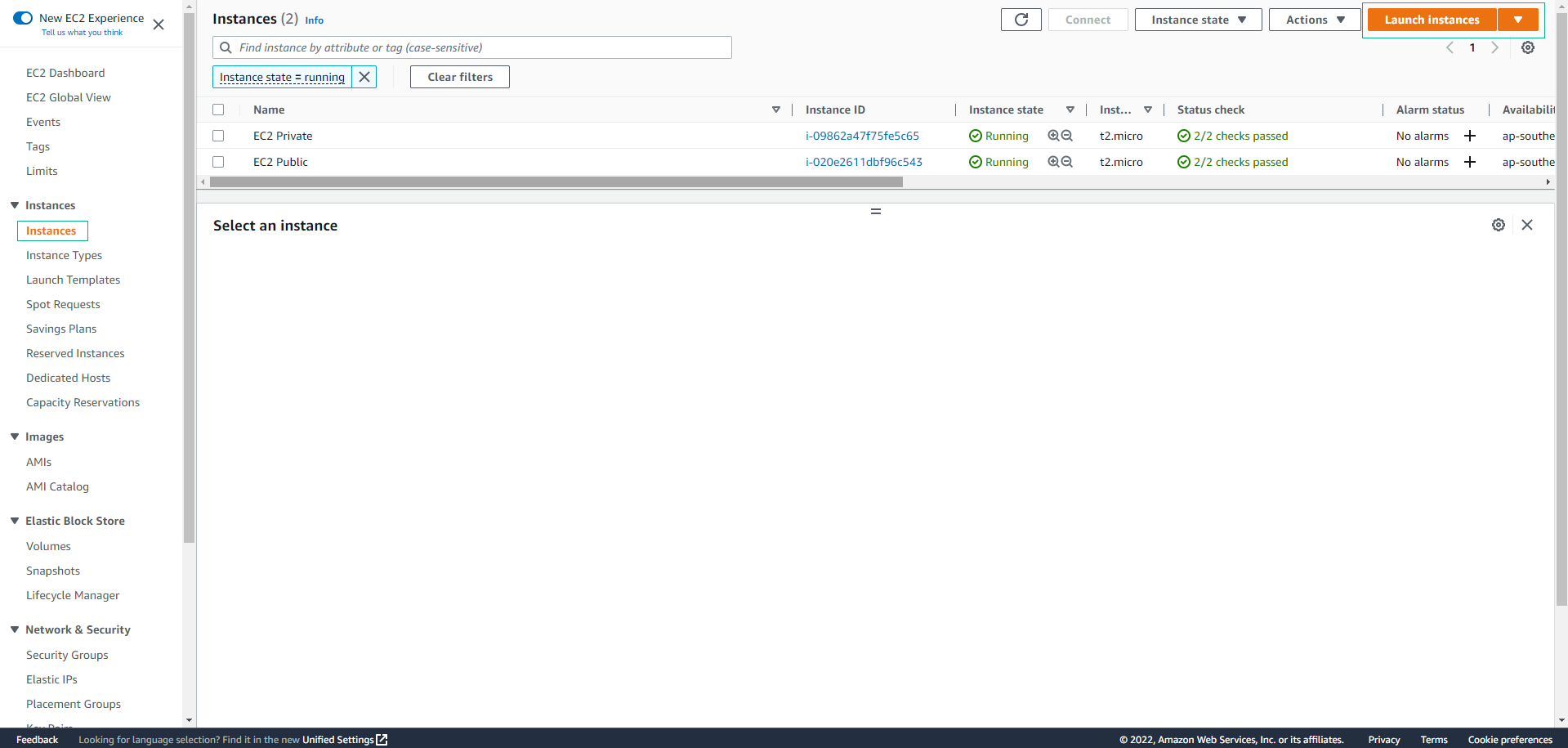

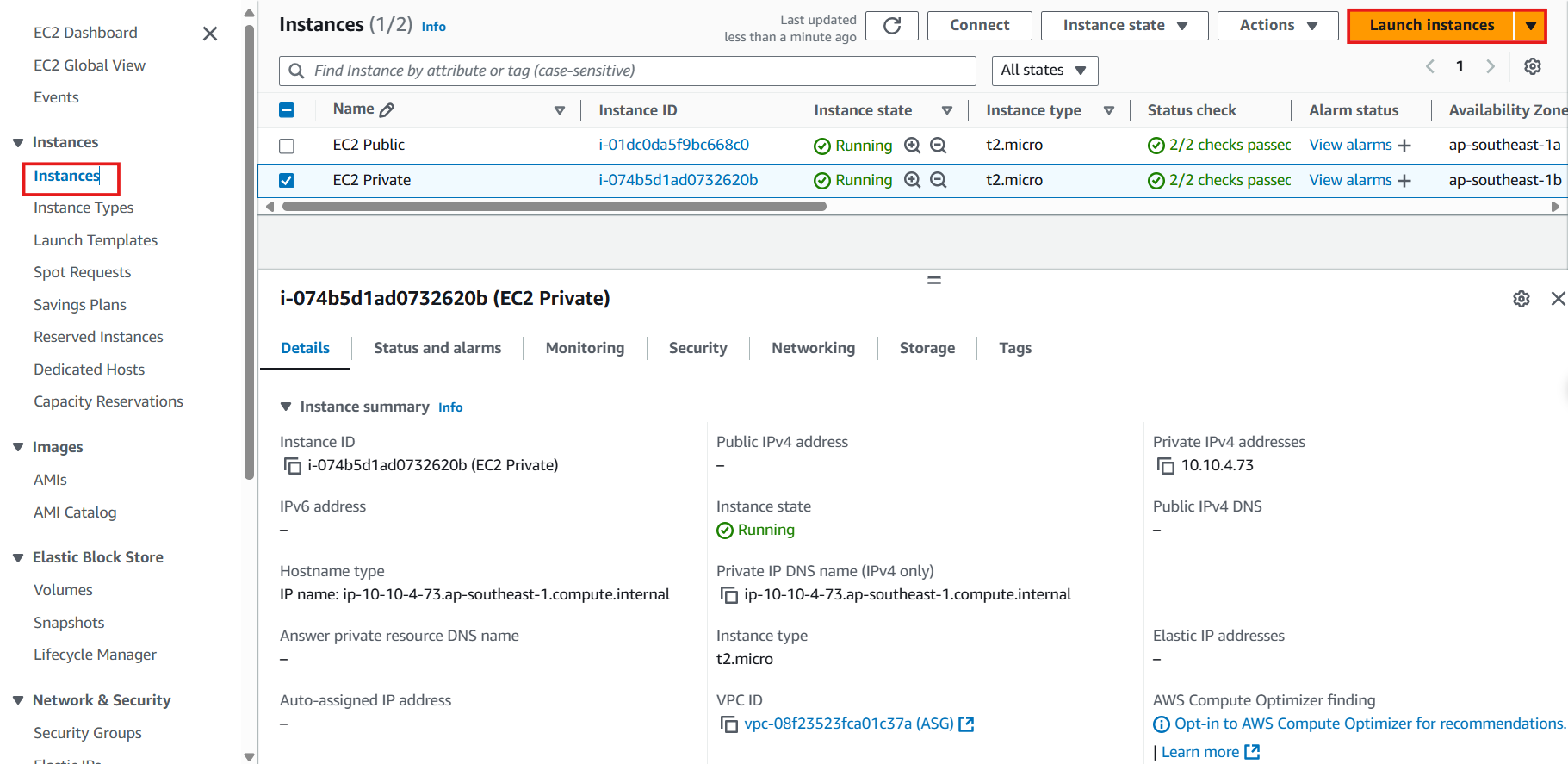

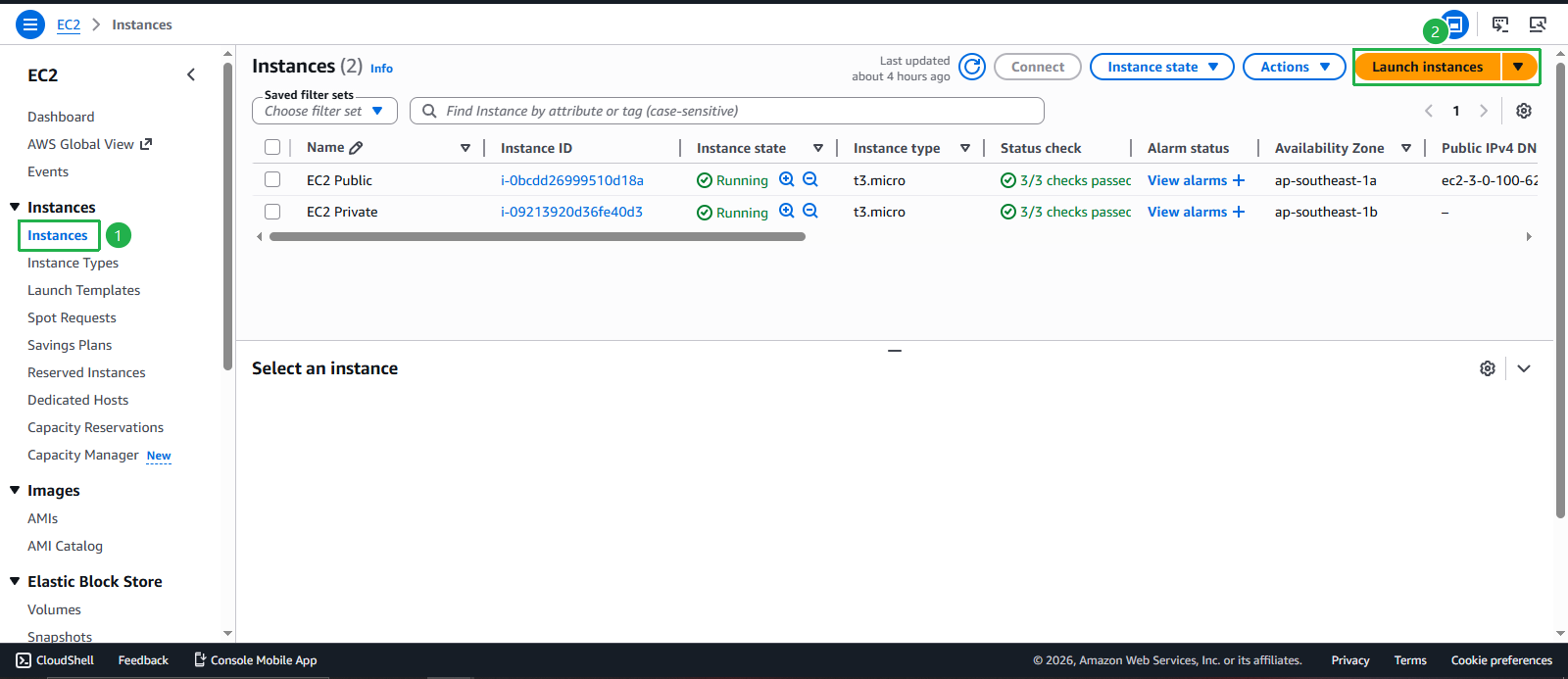

  1. Open the EC2 Dashboard
    • Select Instances
    • Click Launch instances

Create VPC

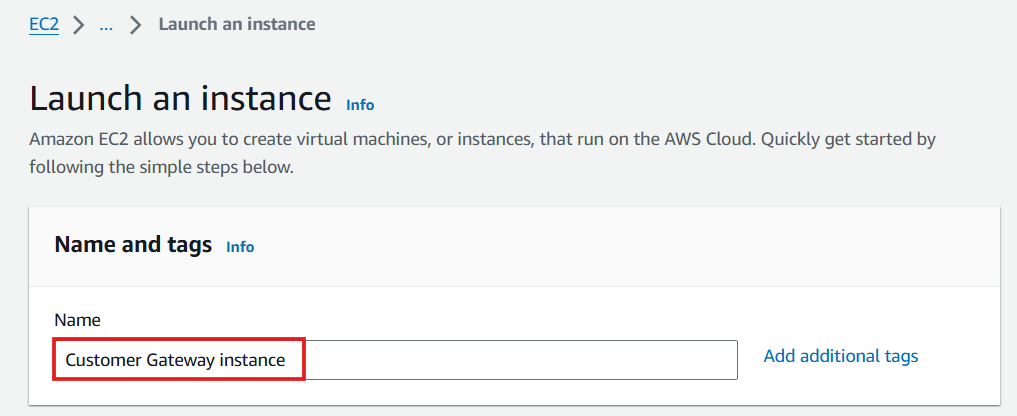

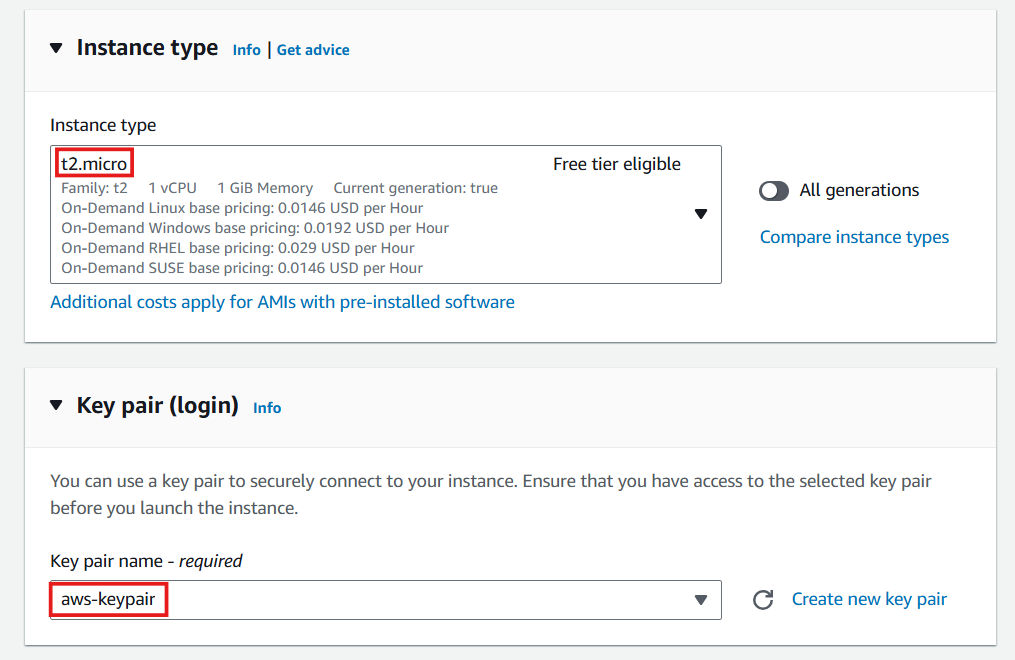

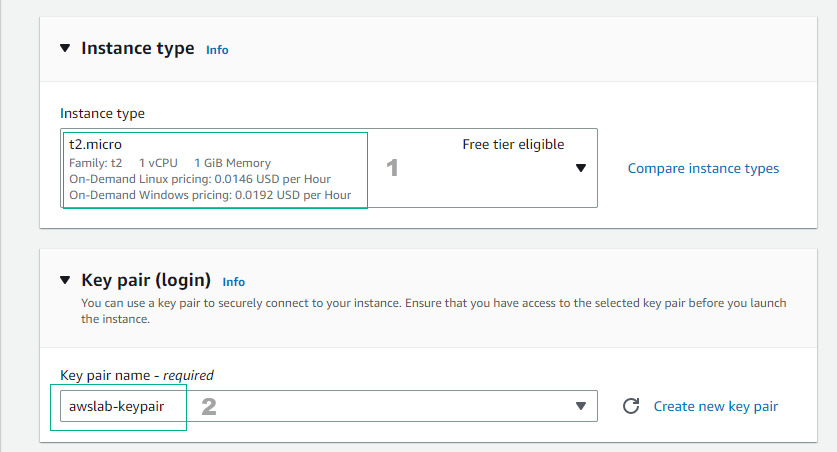

  1. Configure the Instance

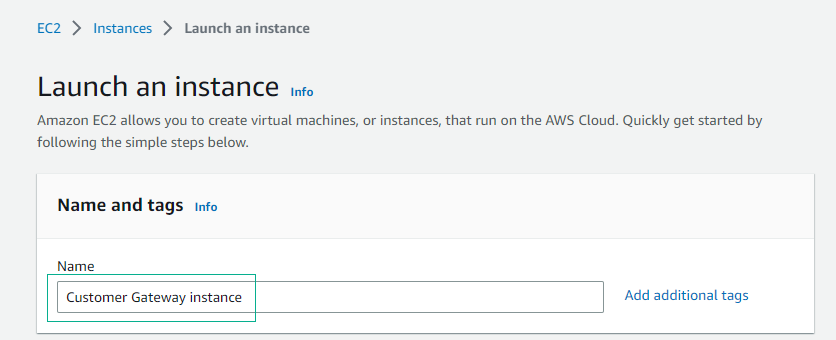

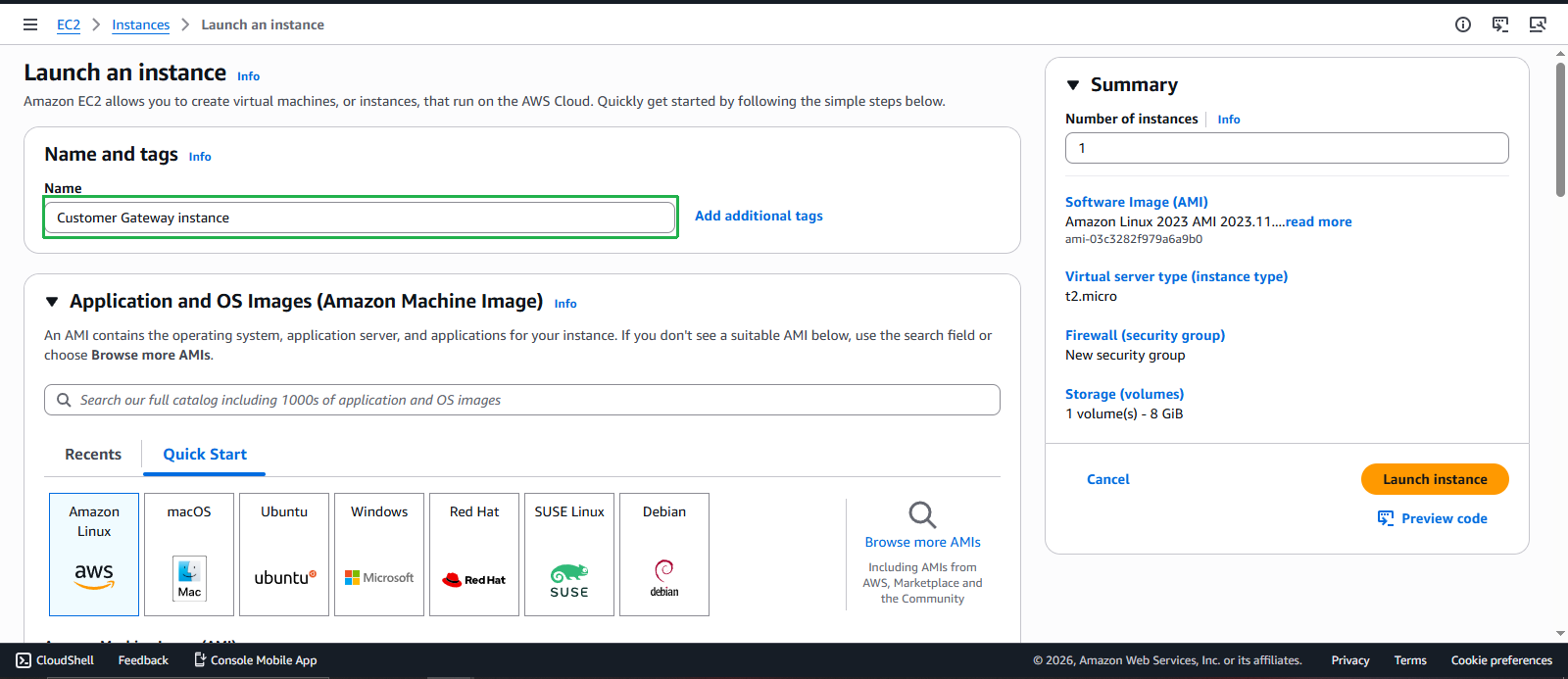

    • Name: Enter Customer Gateway instance

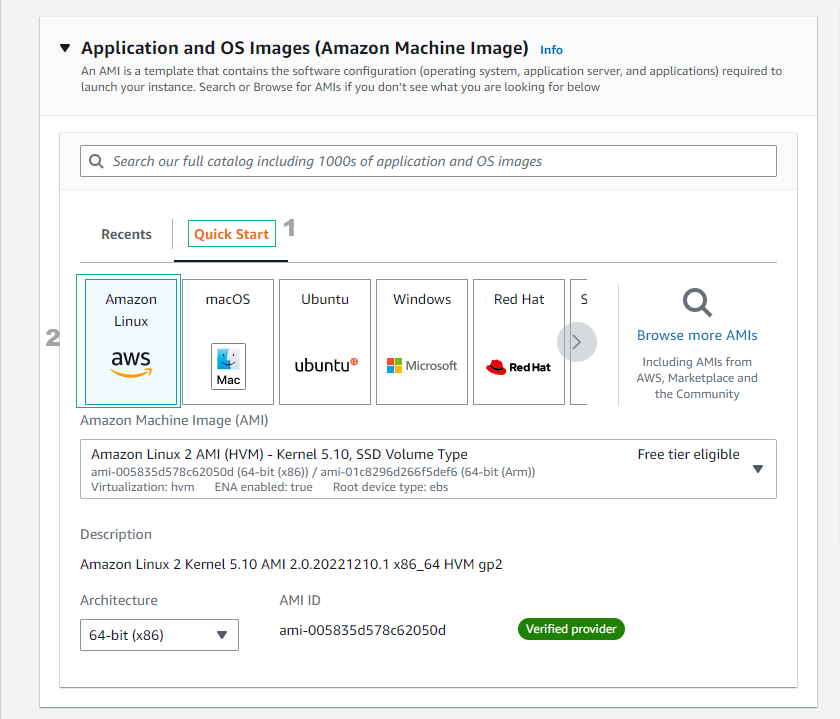

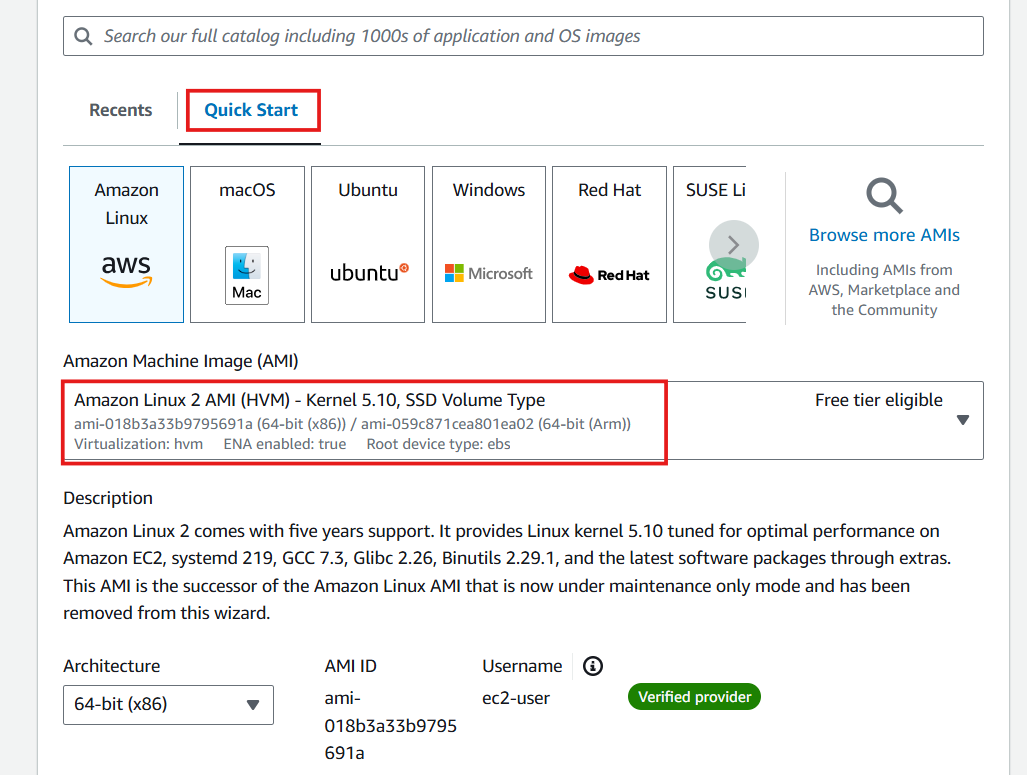

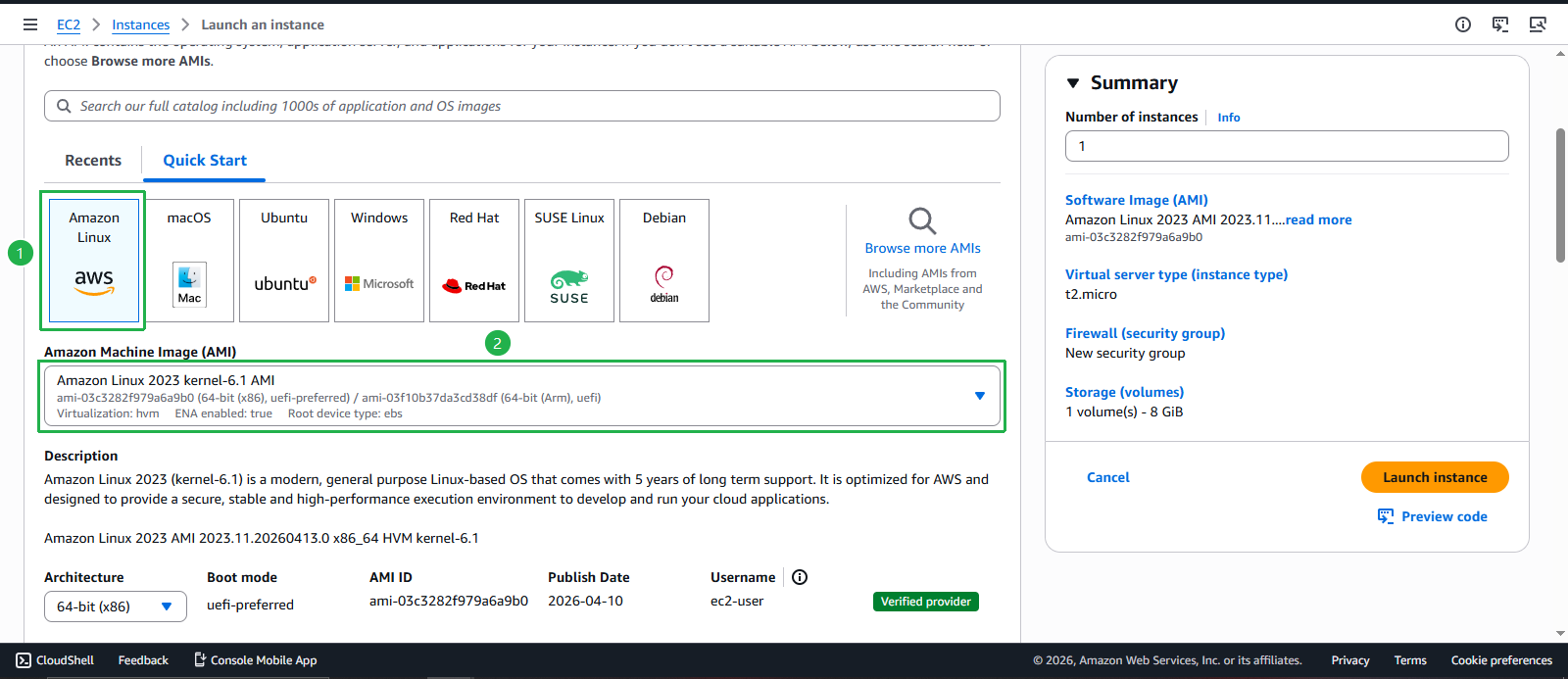

    • AMI: Select Amazon Linux 2023
    • Instance type: t3.micro
    • Key pair: Select aws-keypair

    💡 Instance Type Selection: t3.micro is sufficient for lab VPN gateway, production should use t3.small or larger.

Create VPC Create VPC

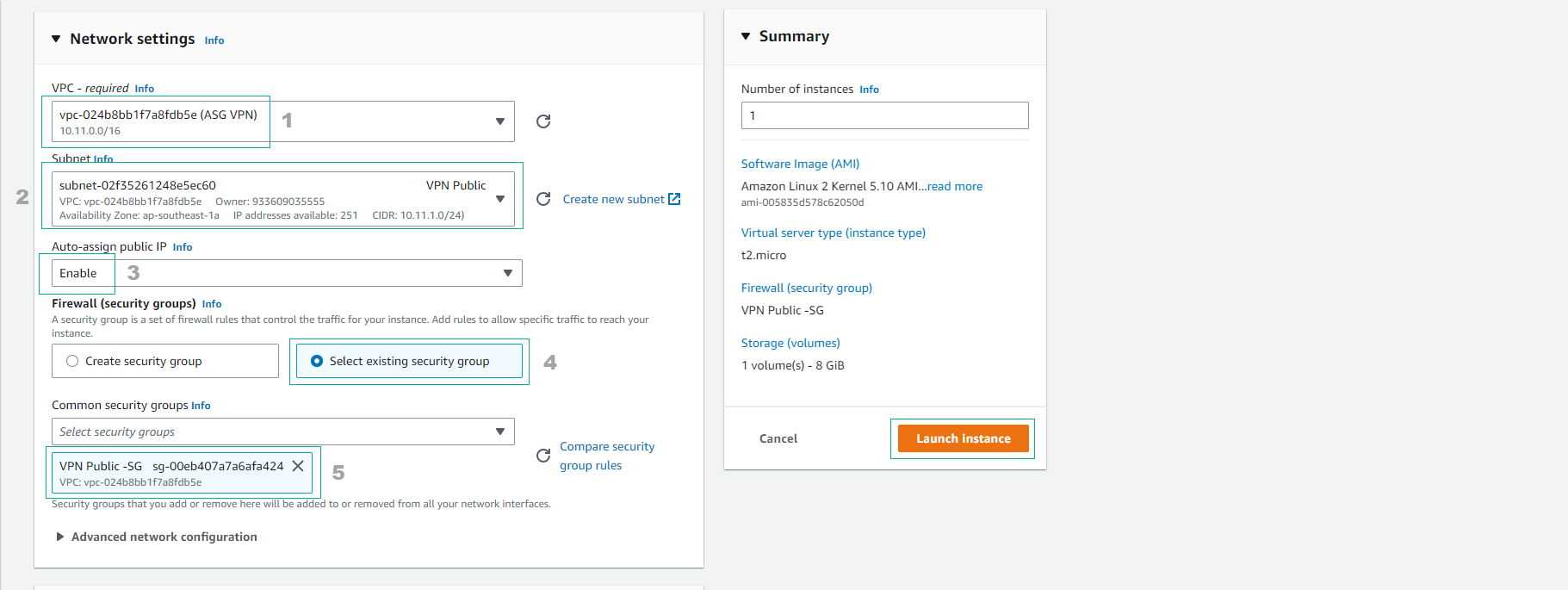

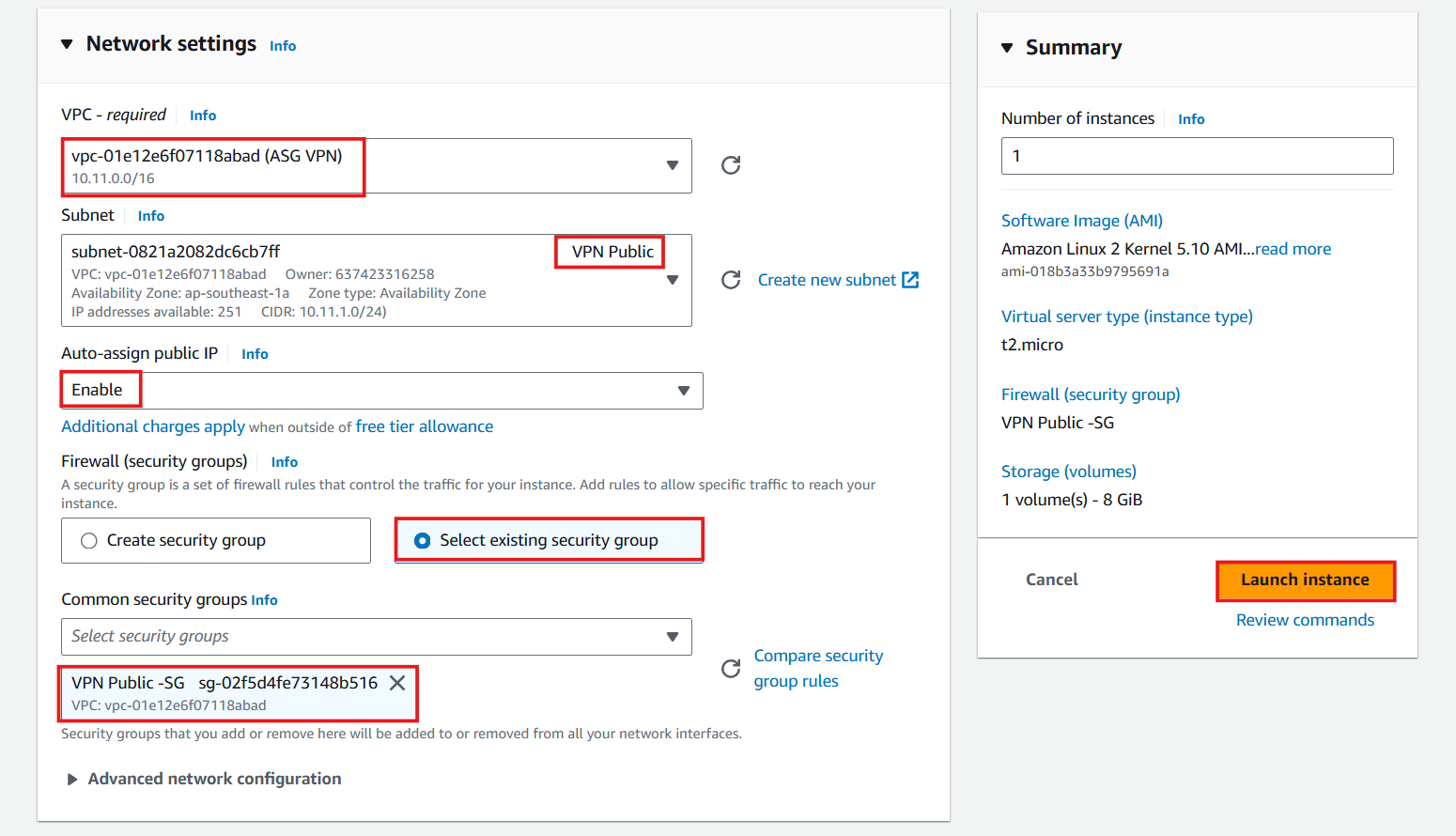

  1. Network Settings

    • VPC: Select ASG VPN
    • Subnet: Choose VPN Public
    • Auto-assign public IP: Enable (Required for VPN)
    • Security group: Select VPN Public-SG

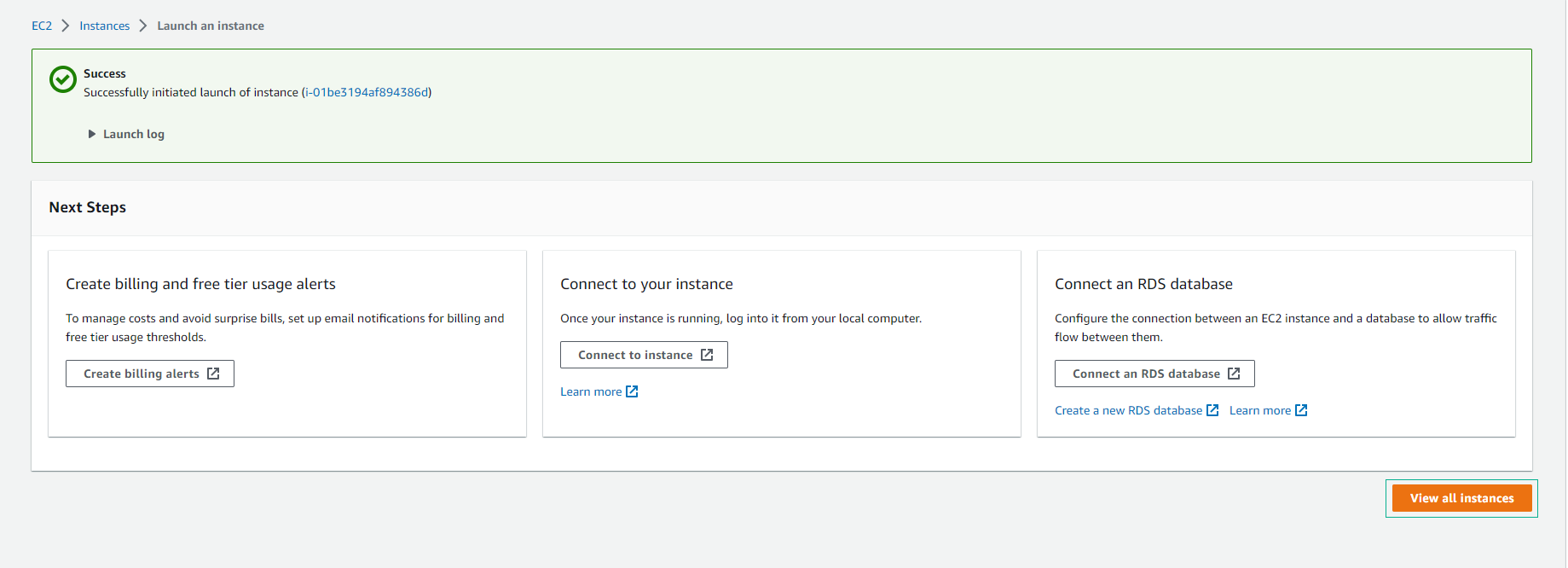

  2. Review and Launch Instance

    • Double-check all configurations

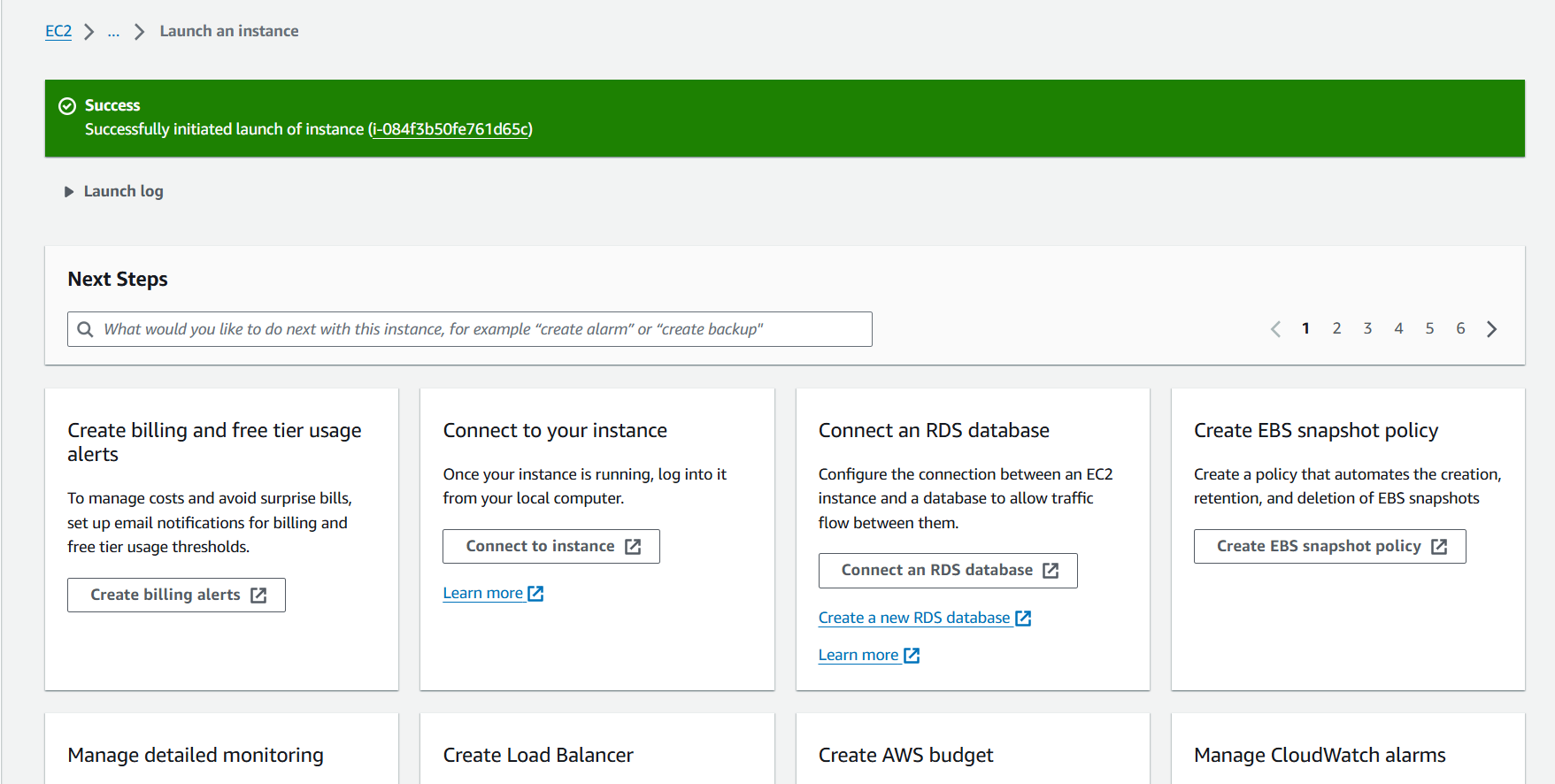

    • Click Launch instance

Create VPC Create VPC Create VPC

🏗️ Customer Gateway Role

Customer Gateway EC2 Instance
├── Libreswan/OpenSwan (IPsec software)
├── Public IP (VPN endpoint)
├── Private IP (10.11.1.x)
└── Routing configuration

⚠️ Important Notes

  • ✅ Instance MUST have a public IP to establish VPN tunnel
  • ✅ Security group must open ports 500 and 4500 (UDP) for IPsec
  • ✅ Will need to disable source/destination check (next step)

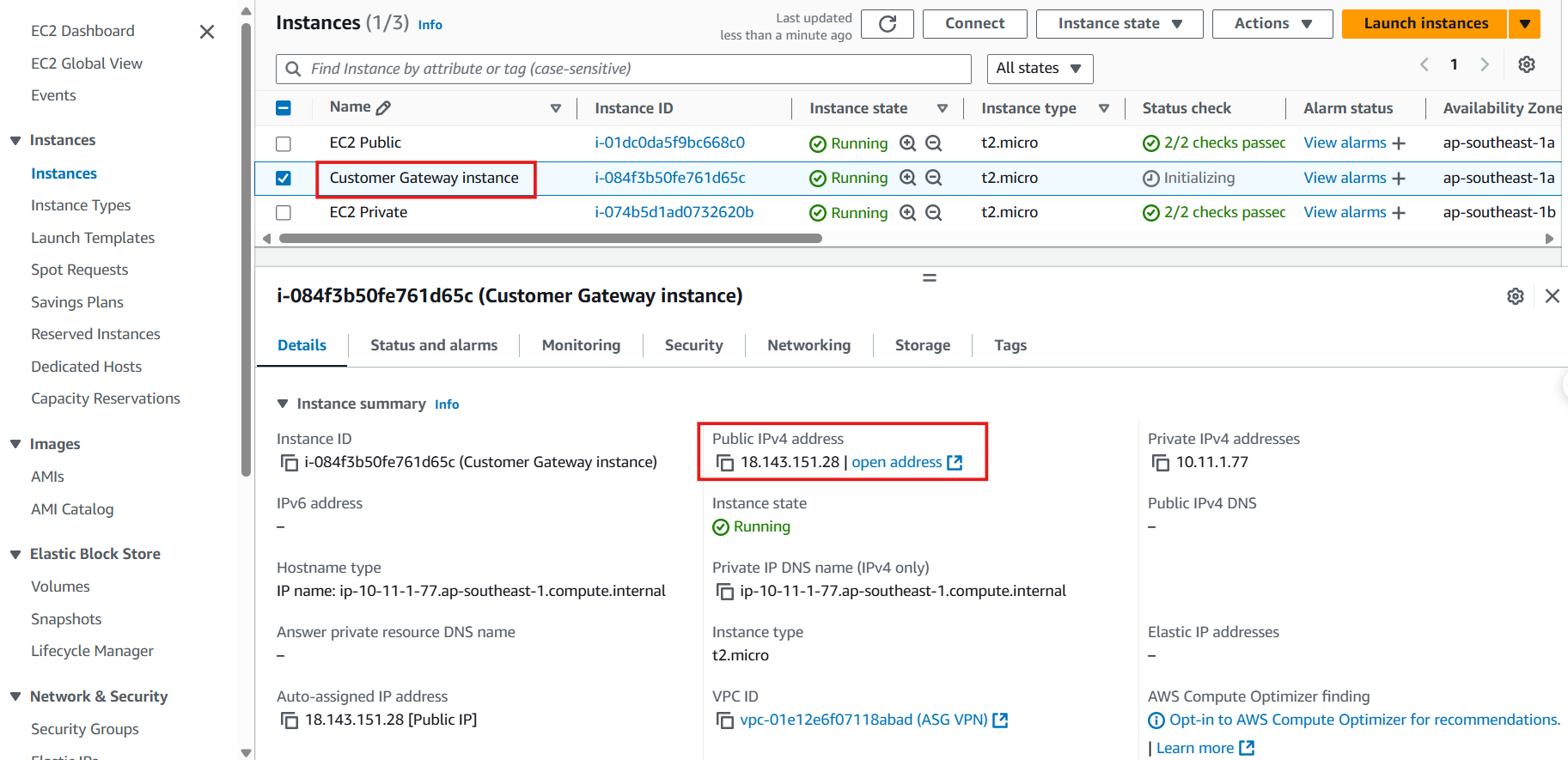

  • ✅ Save the Public IP for Customer Gateway configuration

💡 Next Steps: After the instance is running, we will:

  1. Disable source/destination check
  2. Install Libreswan
  3. Configure IPsec tunnels

✅ Completed: Customer Gateway EC2 is ready for VPN configuration!
