AWS Systems Manager Session Manager

Secure Shell Access with AWS Systems Manager Session Manager

ℹ️ What is Session Manager?
AWS Systems Manager Session Manager provides secure, auditable, browser-based interactive shell access to EC2 instances without the need for SSH keys, bastion hosts, or open inbound ports in security groups.

Benefits of Session Manager

🔒 Enhanced Security:

  • No SSH keys to manage or rotate
  • No open inbound ports required
  • All sessions are logged and auditable
  • IAM-based access control

💰 Cost Optimization:

  • Eliminates need for bastion hosts
  • Reduces NAT Gateway data transfer costs
  • No additional infrastructure required

⚡ Operational Excellence:

  • Centralized access management
  • Session recording capabilities
  • Integration with CloudTrail for compliance

Prerequisites for Session Manager

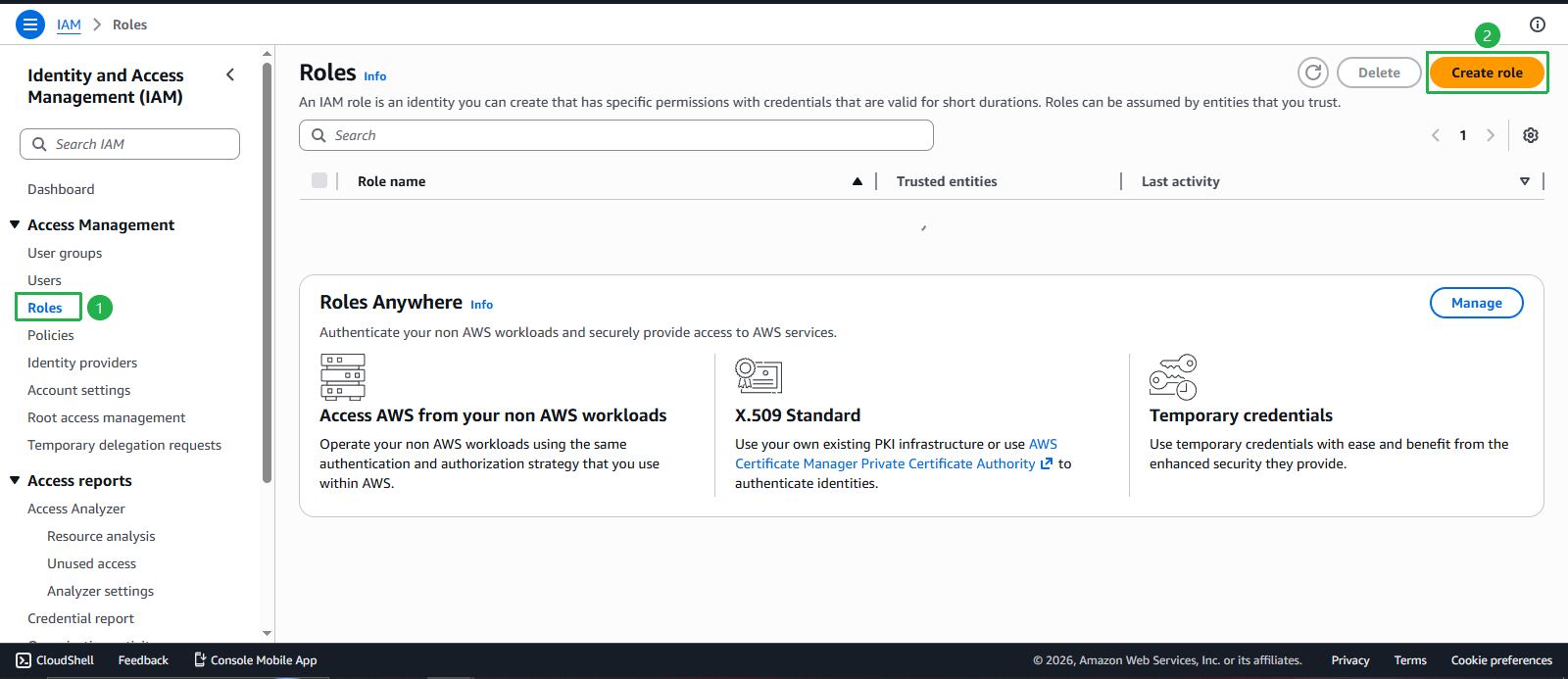

  1. IAM Role for EC2 Instances:

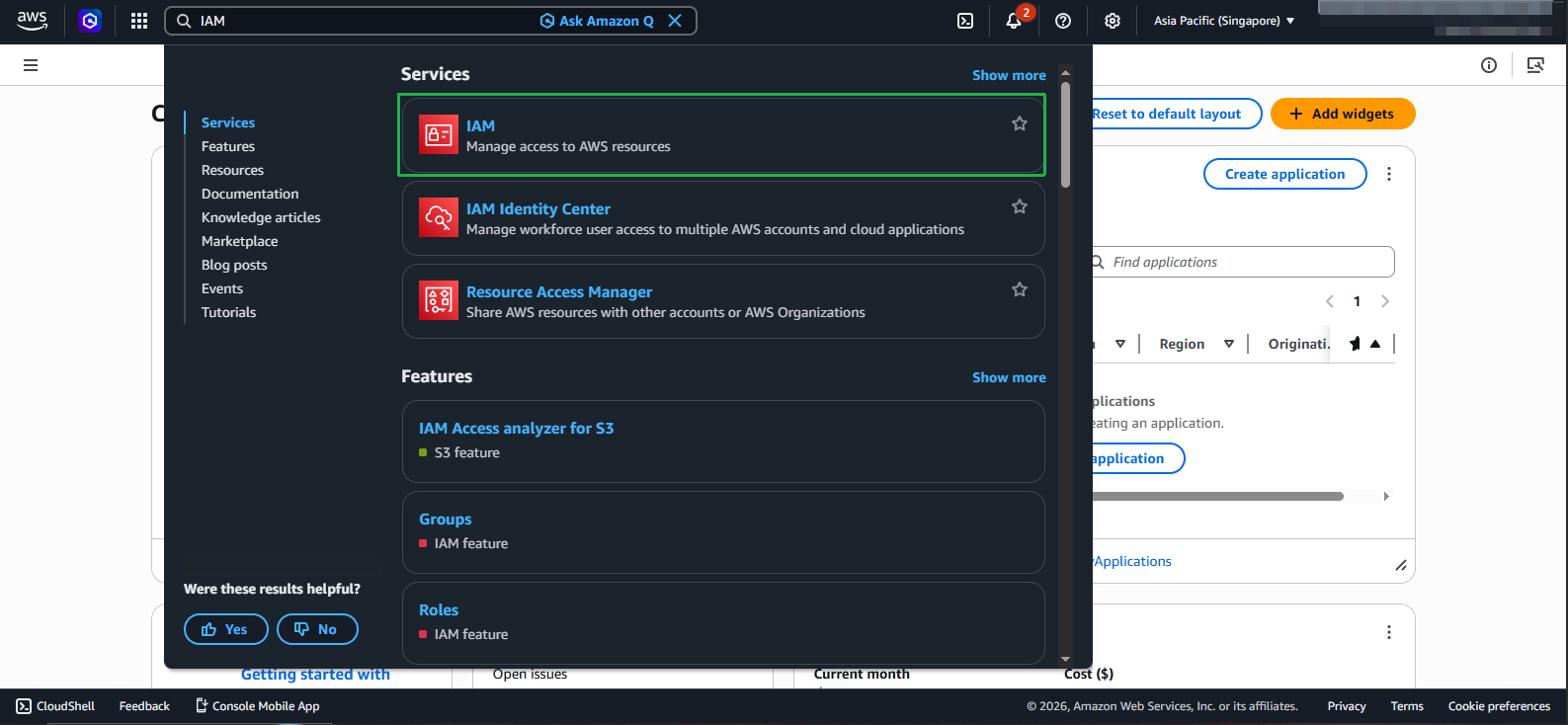

    • Navigate to IAM console
    • Select Roles from the left navigation
    • Click Create role

Create VPC Create VPC

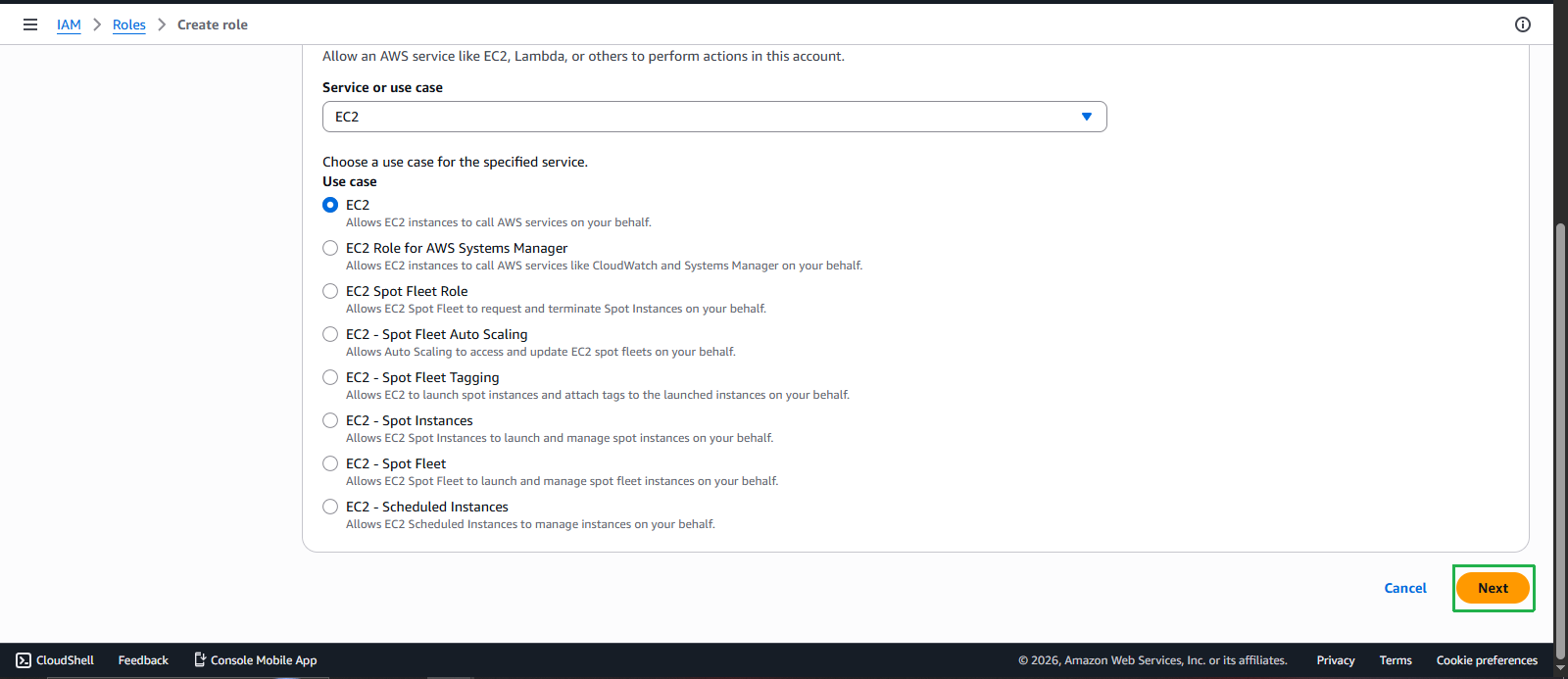

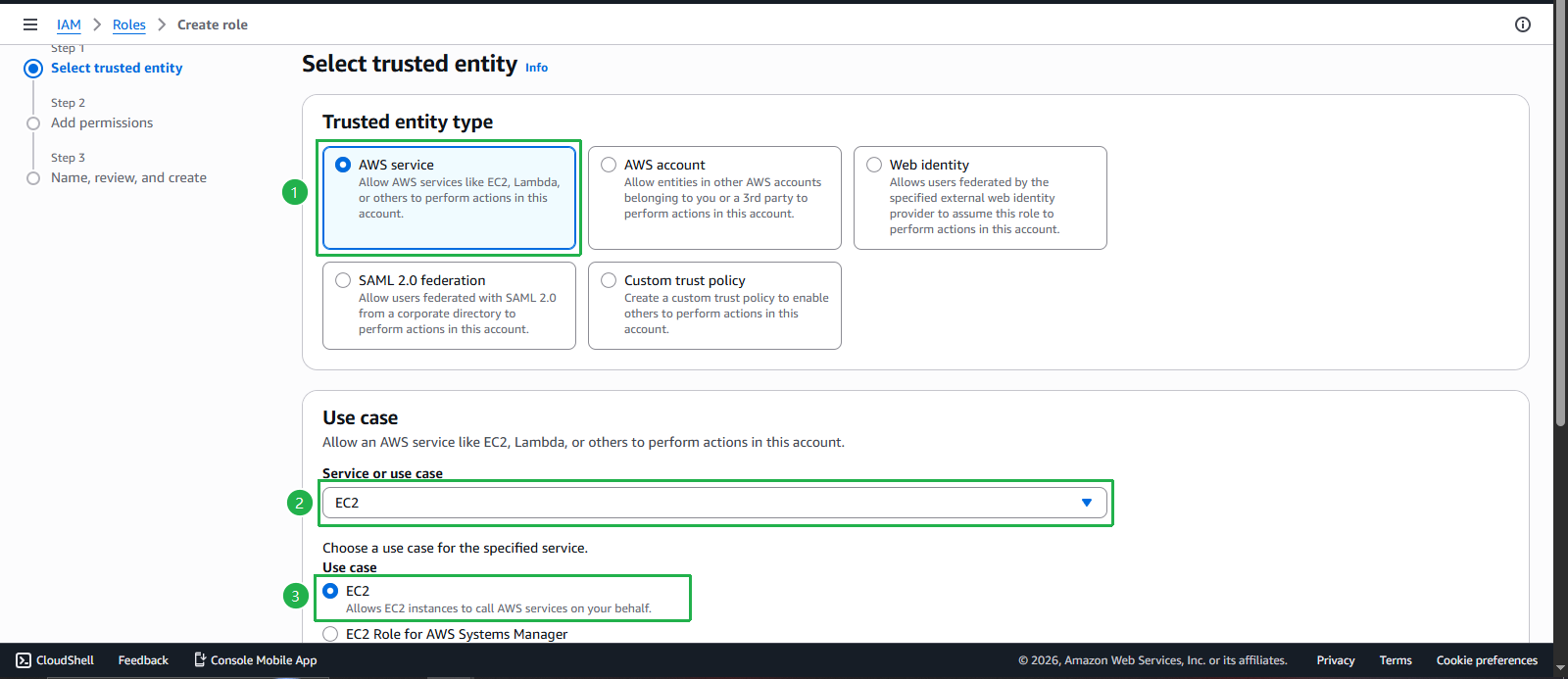

  1. Configure the IAM role:
    • Trusted entity type: Select AWS service
    • Service: Select EC2
    • Click Next

Create VPC

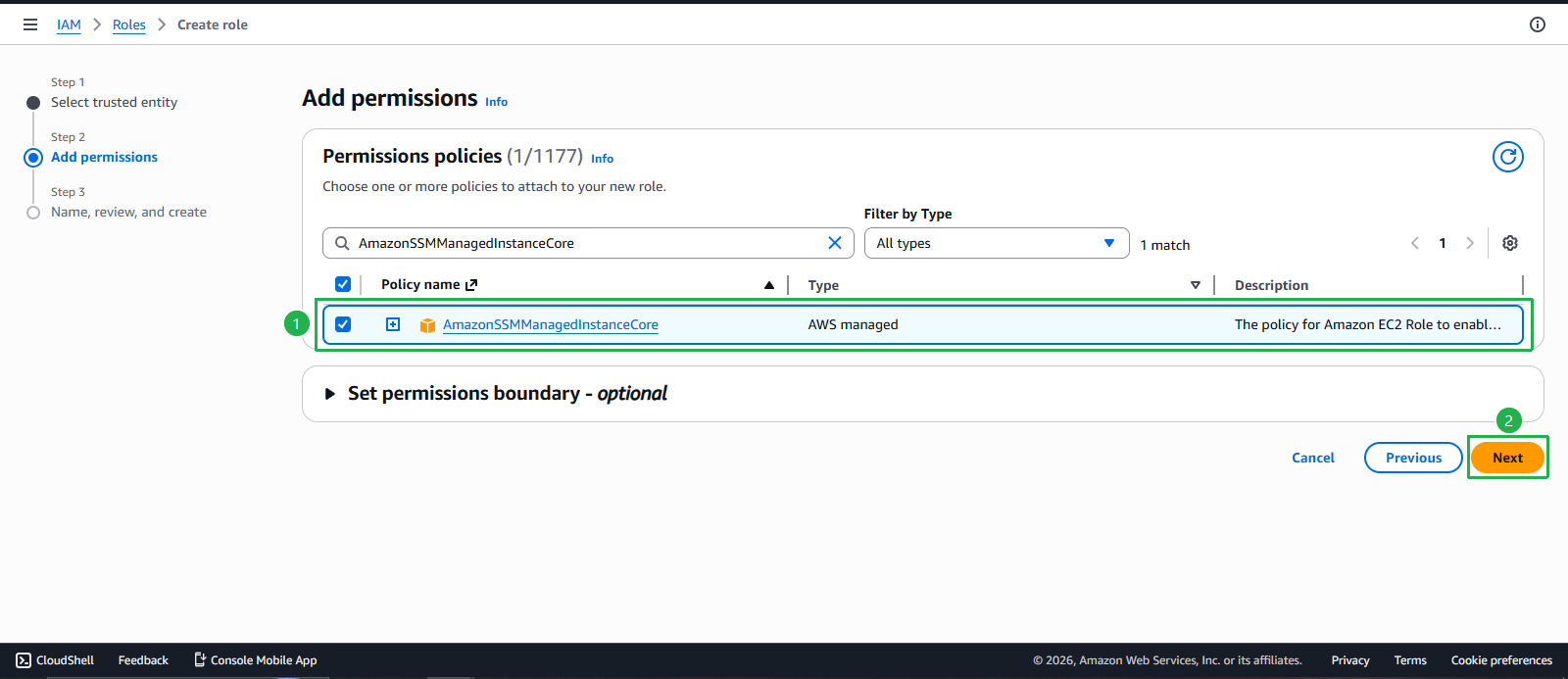

  1. Attach the required policy:
    • Search for and select AmazonSSMManagedInstanceCore
    • This policy provides the minimum permissions required for Session Manager
    • Click Next

Create VPC

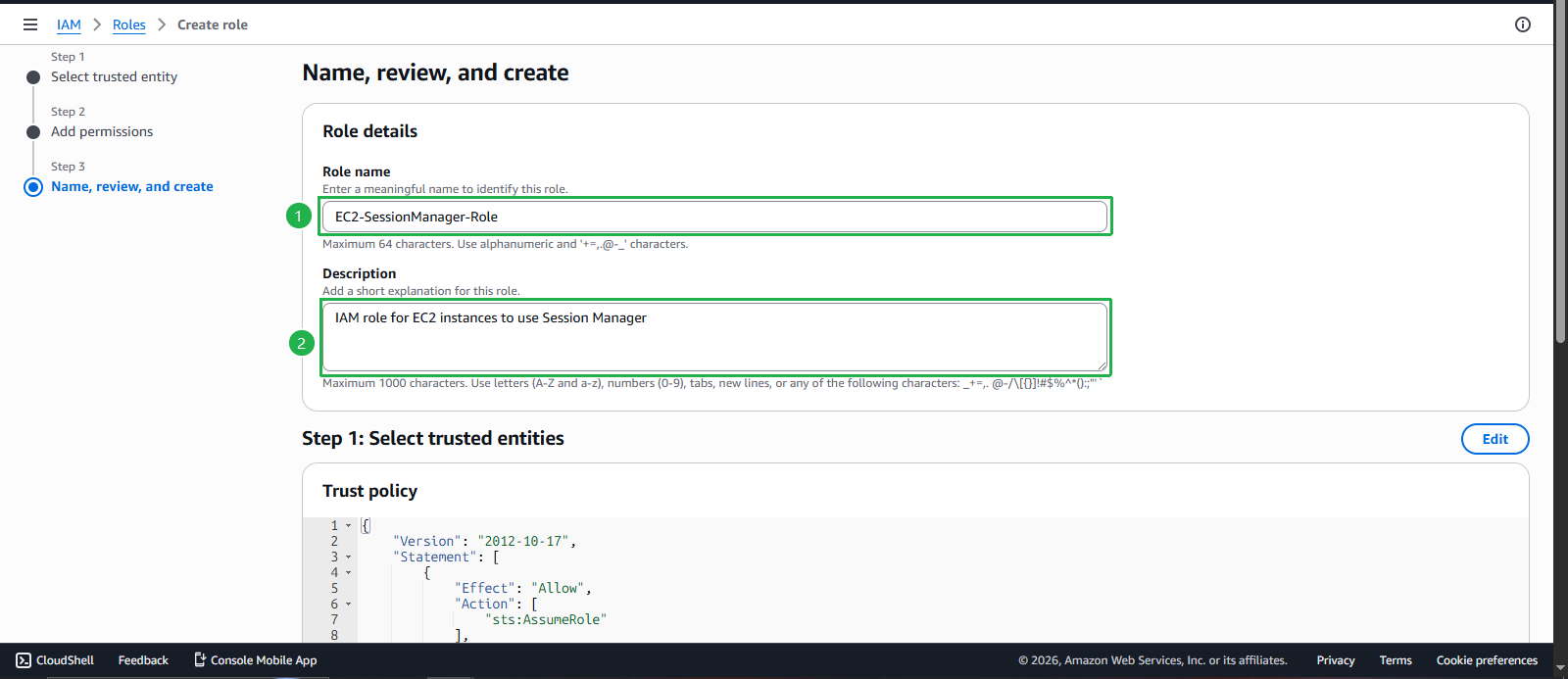

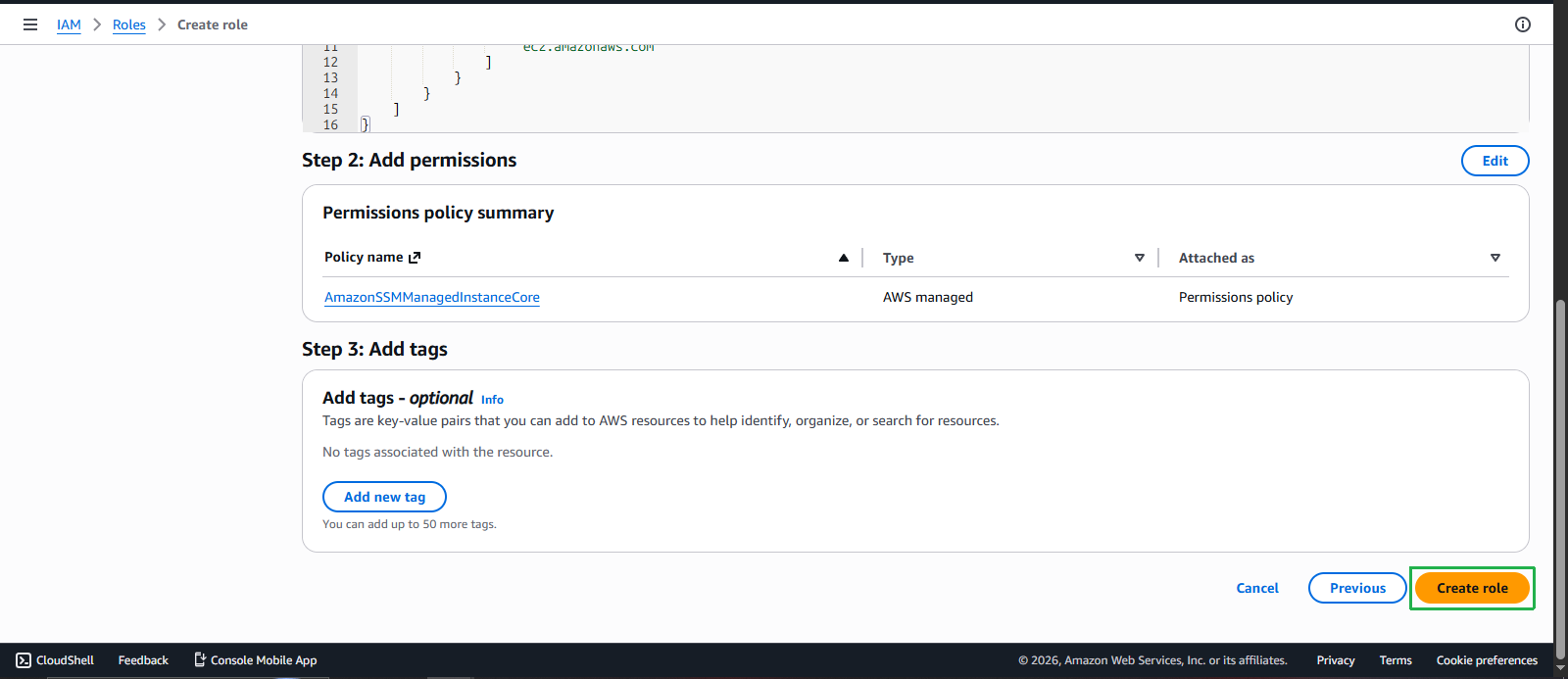

  1. Name and create the role:
    • Role name: Enter EC2-SessionManager-Role
    • Description: Enter IAM role for EC2 instances to use Session Manager
    • Click Create role

Create VPC Create VPC

Attach IAM Role to EC2 Instances

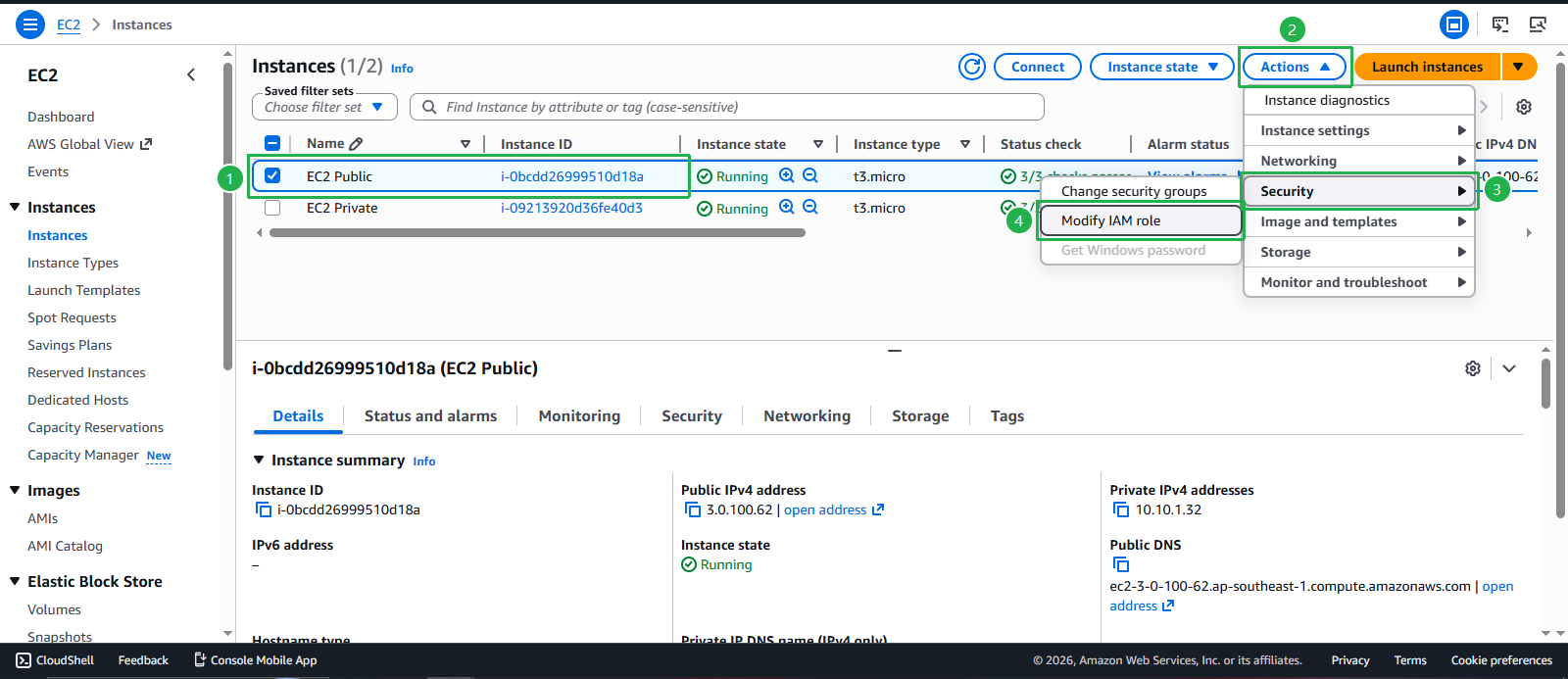

  1. Attach the role to your EC2 instances:
    • Navigate to EC2 console
    • Select Instances
    • Select your EC2 Public instance
    • Click Actions > Security > Modify IAM role

Create VPC

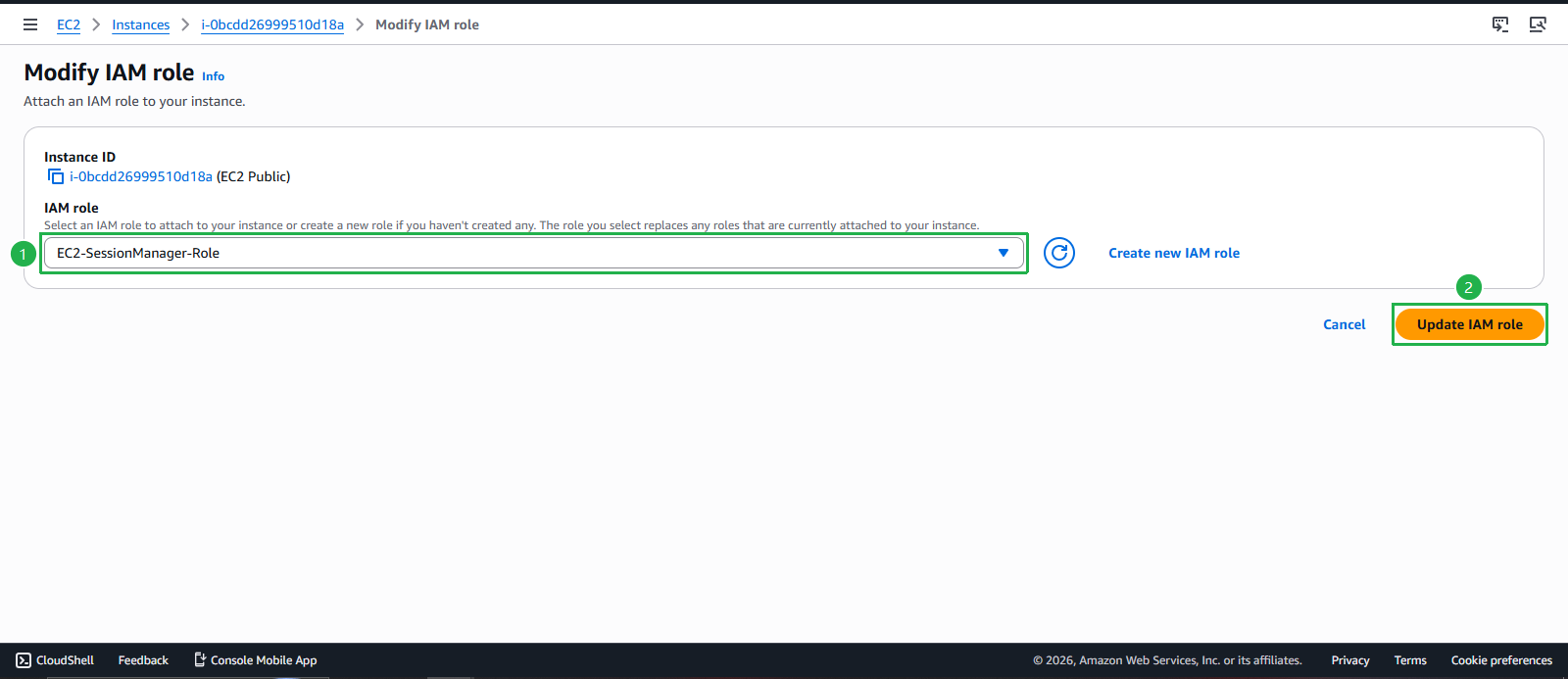

  1. Assign the IAM role:
    • IAM role: Select EC2-SessionManager-Role
    • Click Update IAM role

Create VPC

  1. Repeat the process for your EC2 Private instance:
    • Select EC2 Private instance
    • Actions > Security > Modify IAM role
    • Select EC2-SessionManager-Role
    • Click Update IAM role

Create VPC Create VPC

Create VPC Endpoints for Session Manager

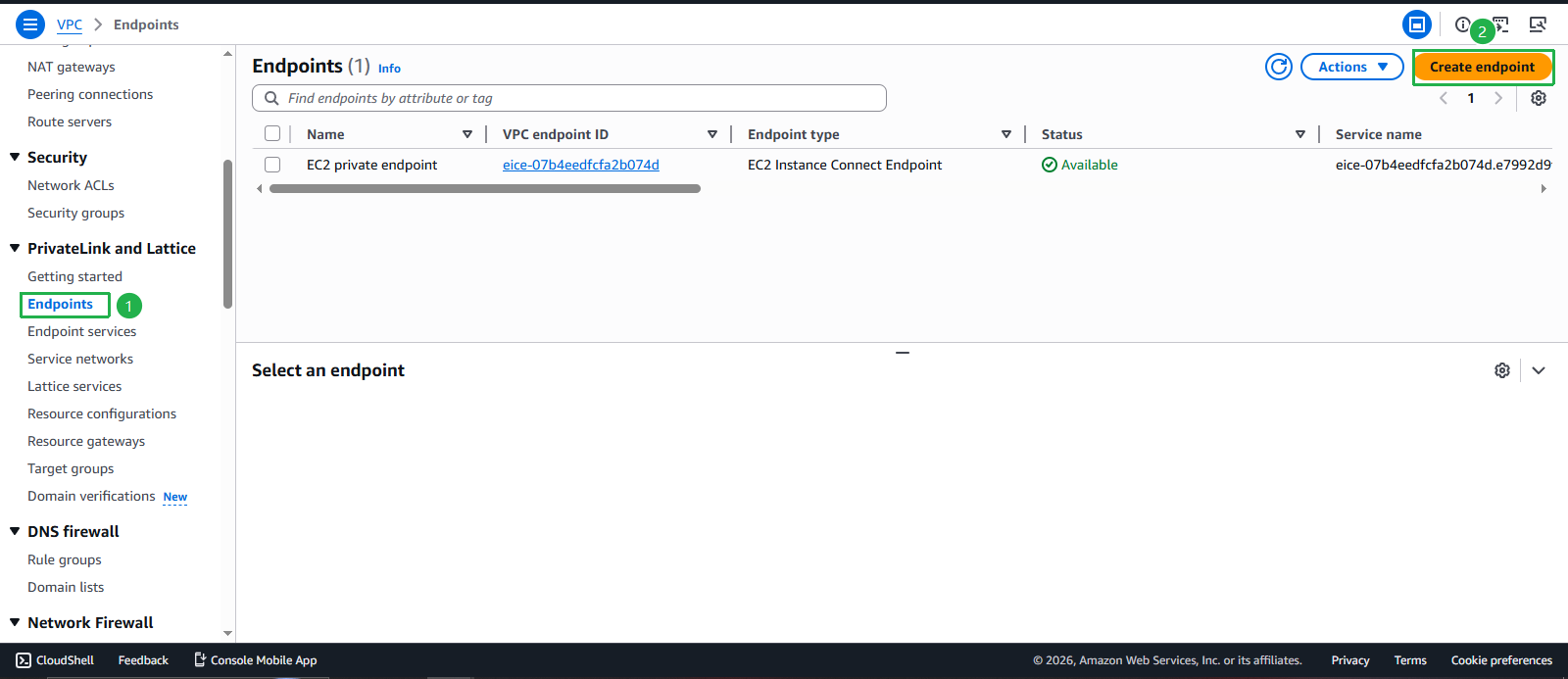

  1. Create VPC Endpoints for private subnet access:
    • Navigate to VPC console
    • Select Endpoints from the left navigation
    • Click Create endpoint

Create VPC

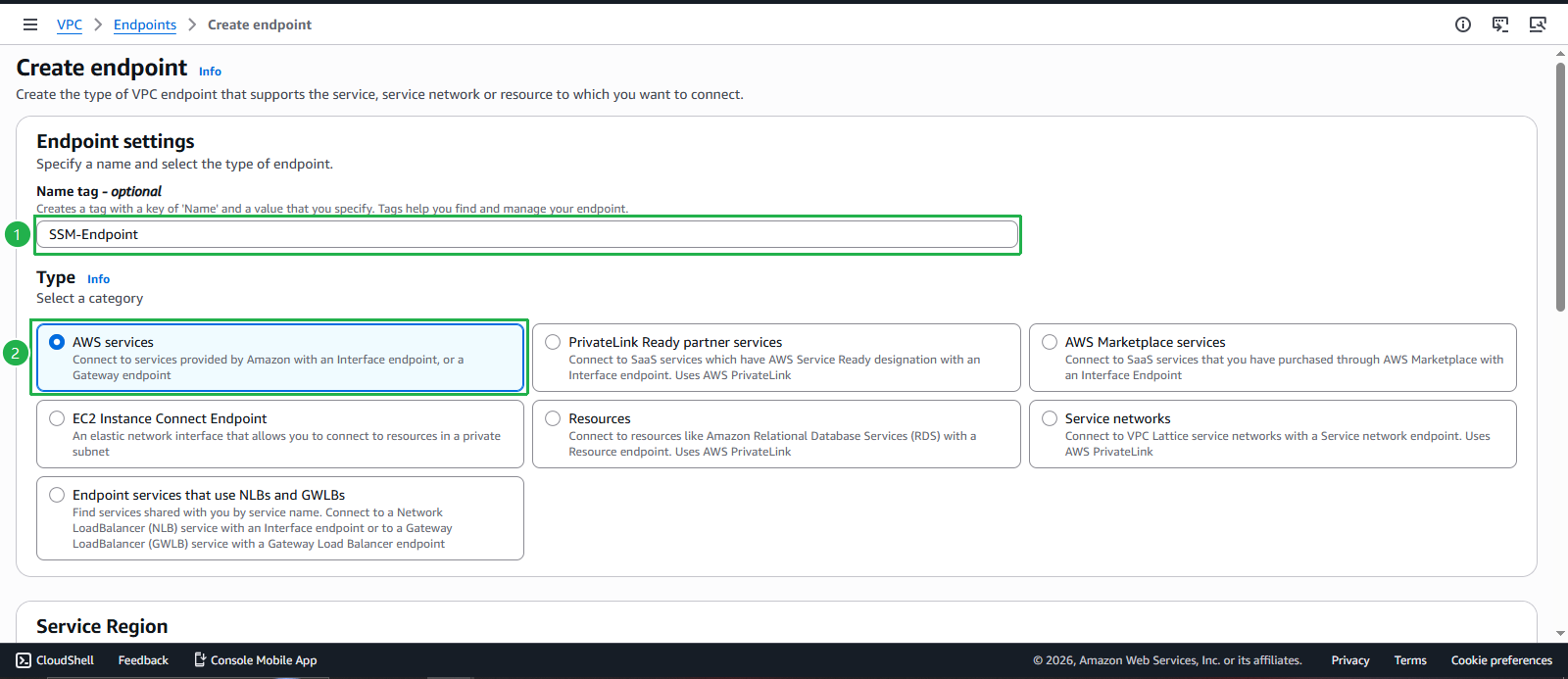

  1. Configure SSM endpoint:
    • Name tag: Enter SSM-Endpoint
    • Service category: Select AWS services

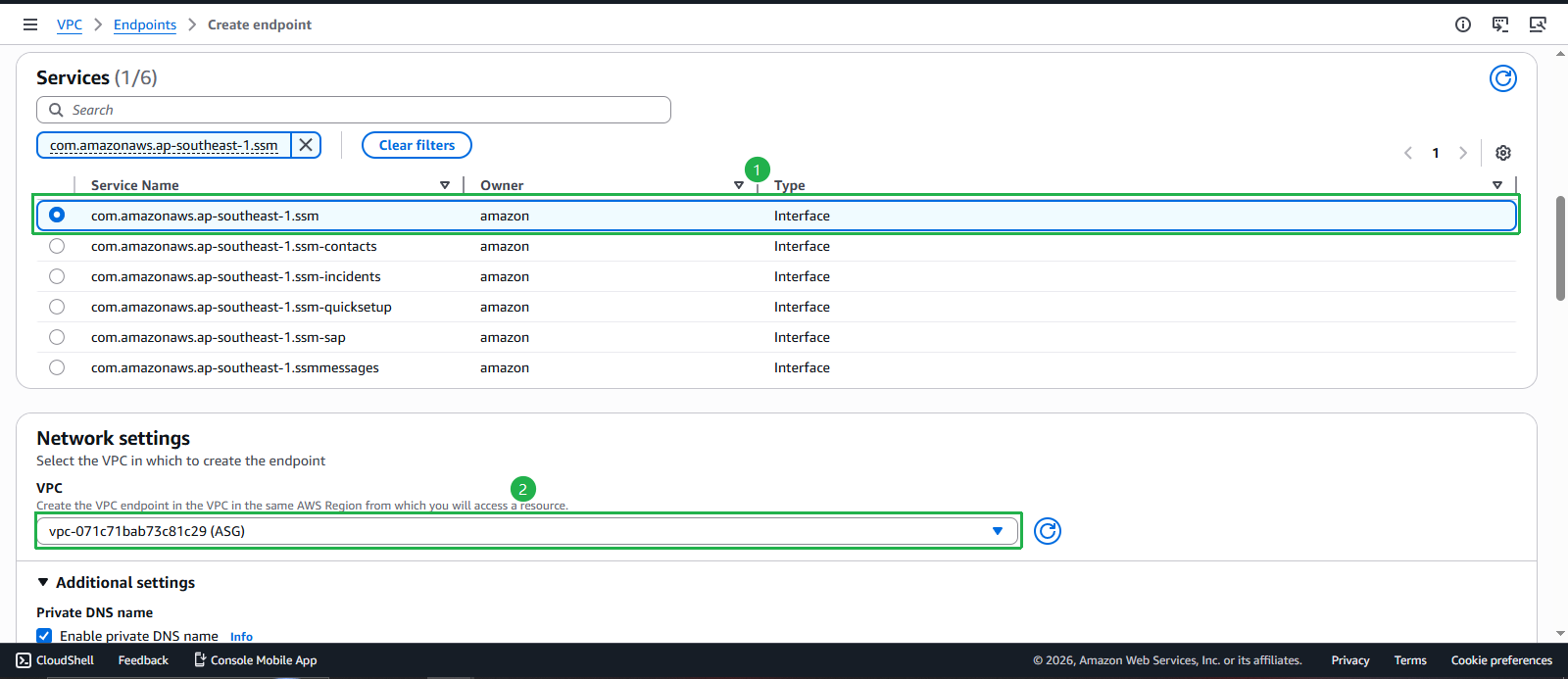

    • Service name: Search and select com.amazonaws.us-west-1.ssm

Create VPC

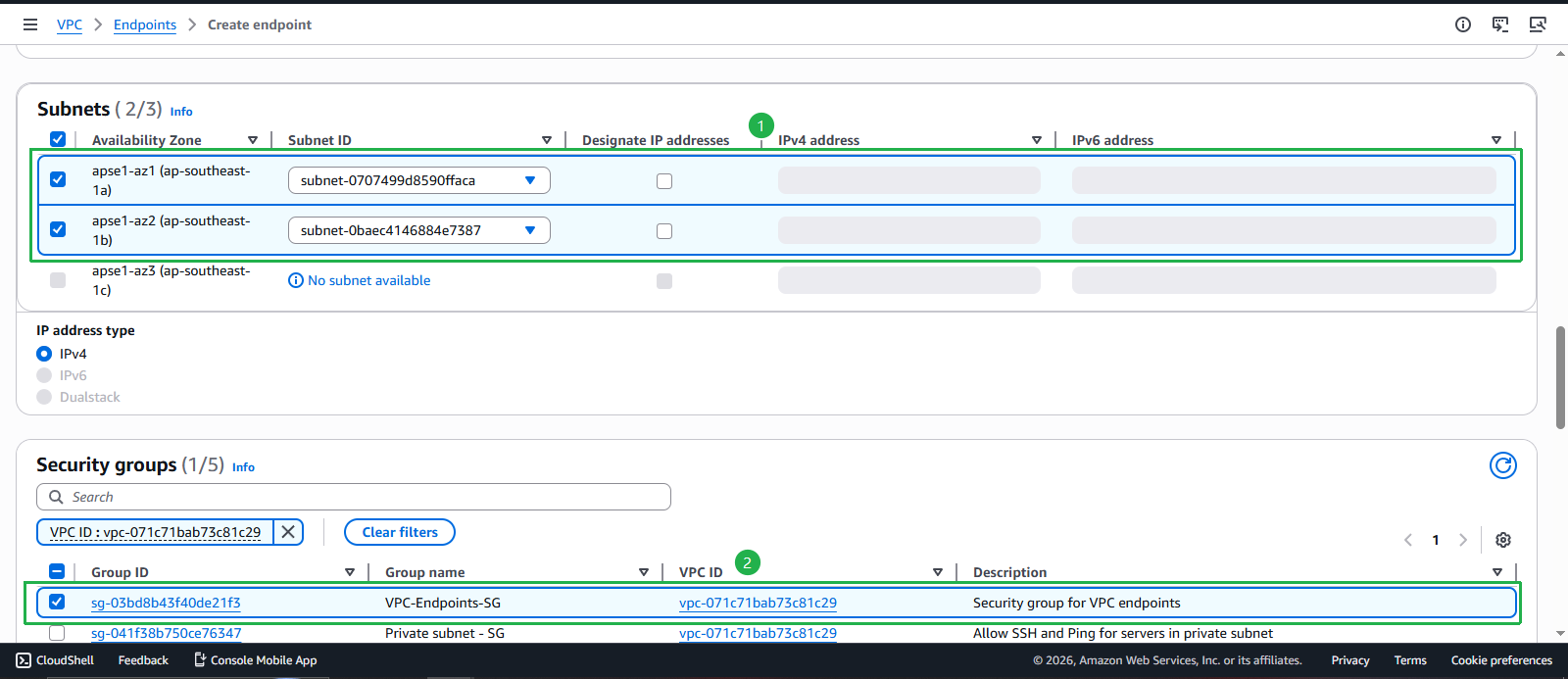

  • VPC: Select your ASG VPC

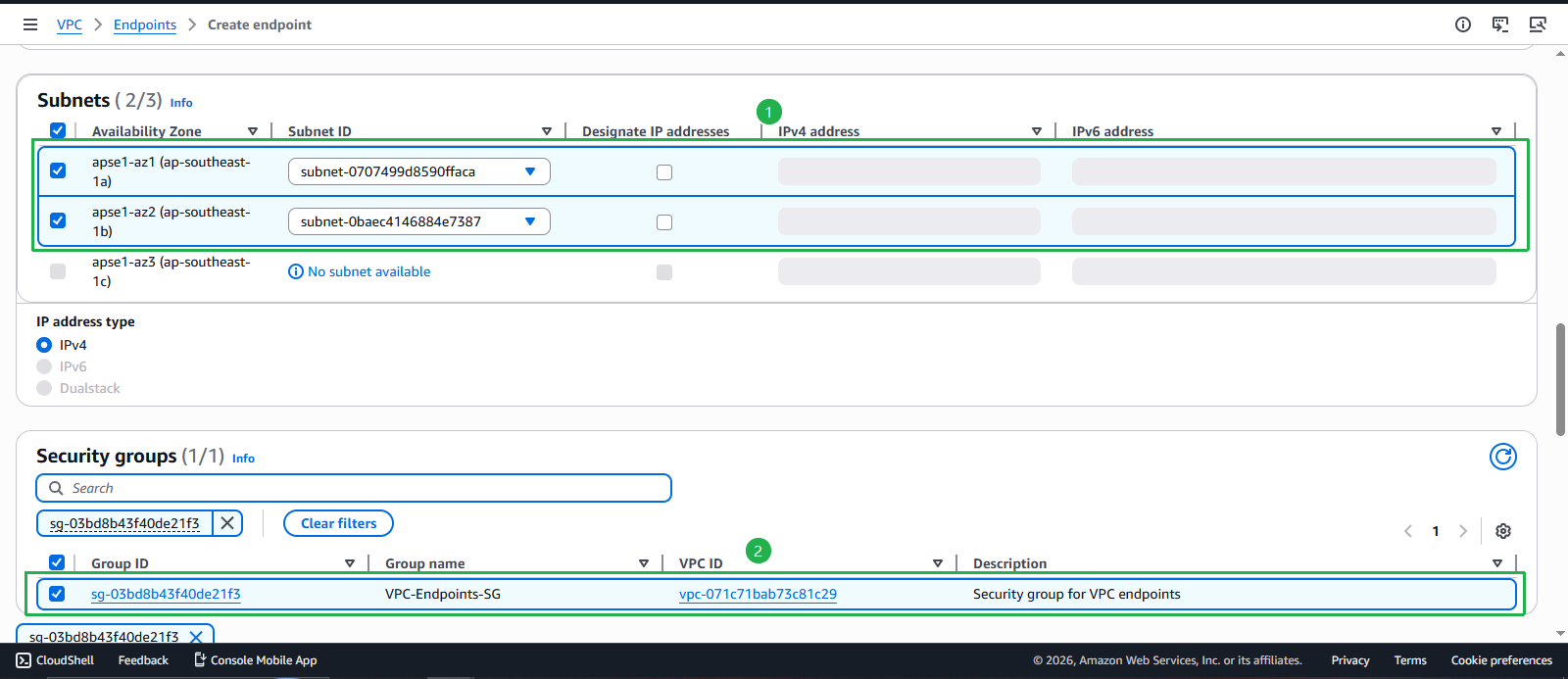

  • Subnets: Select Private Subnet 1 and Private Subnet 2

Create VPC

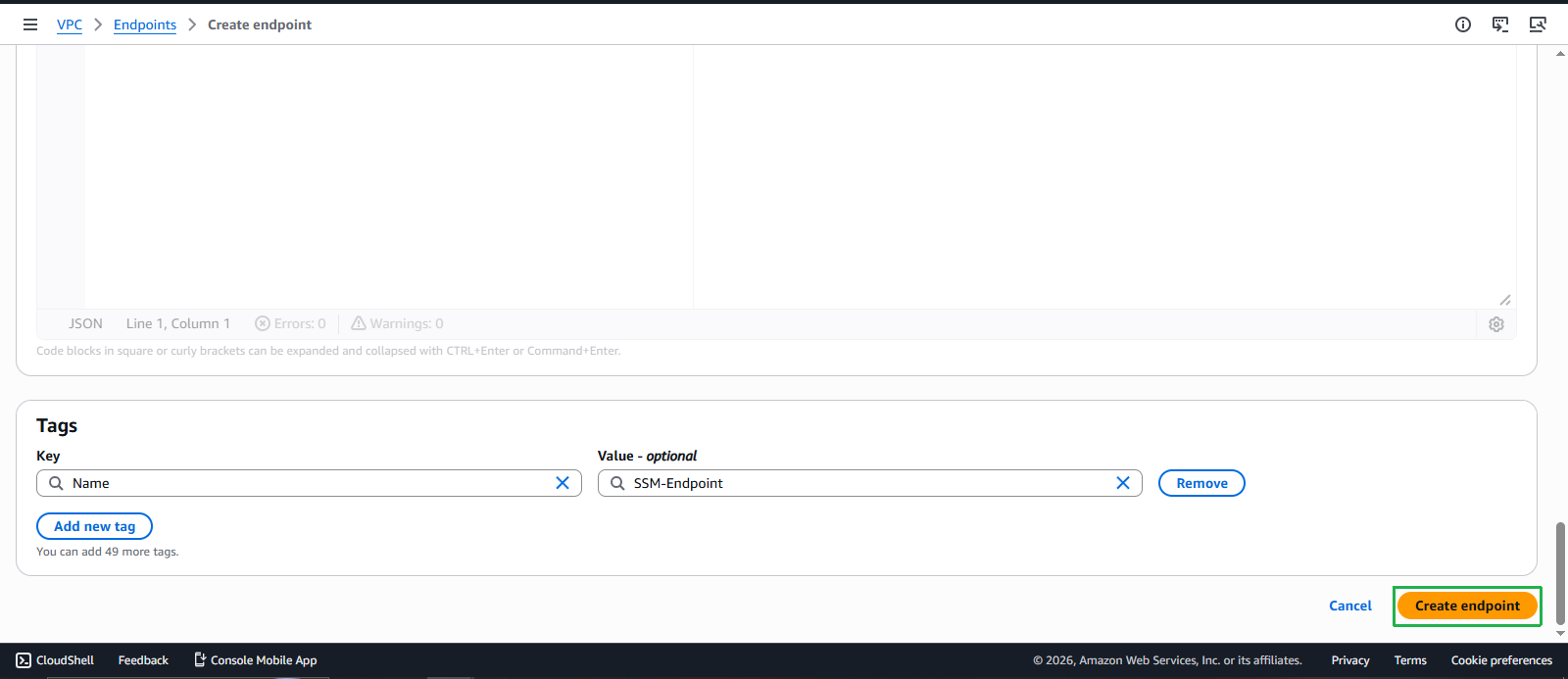

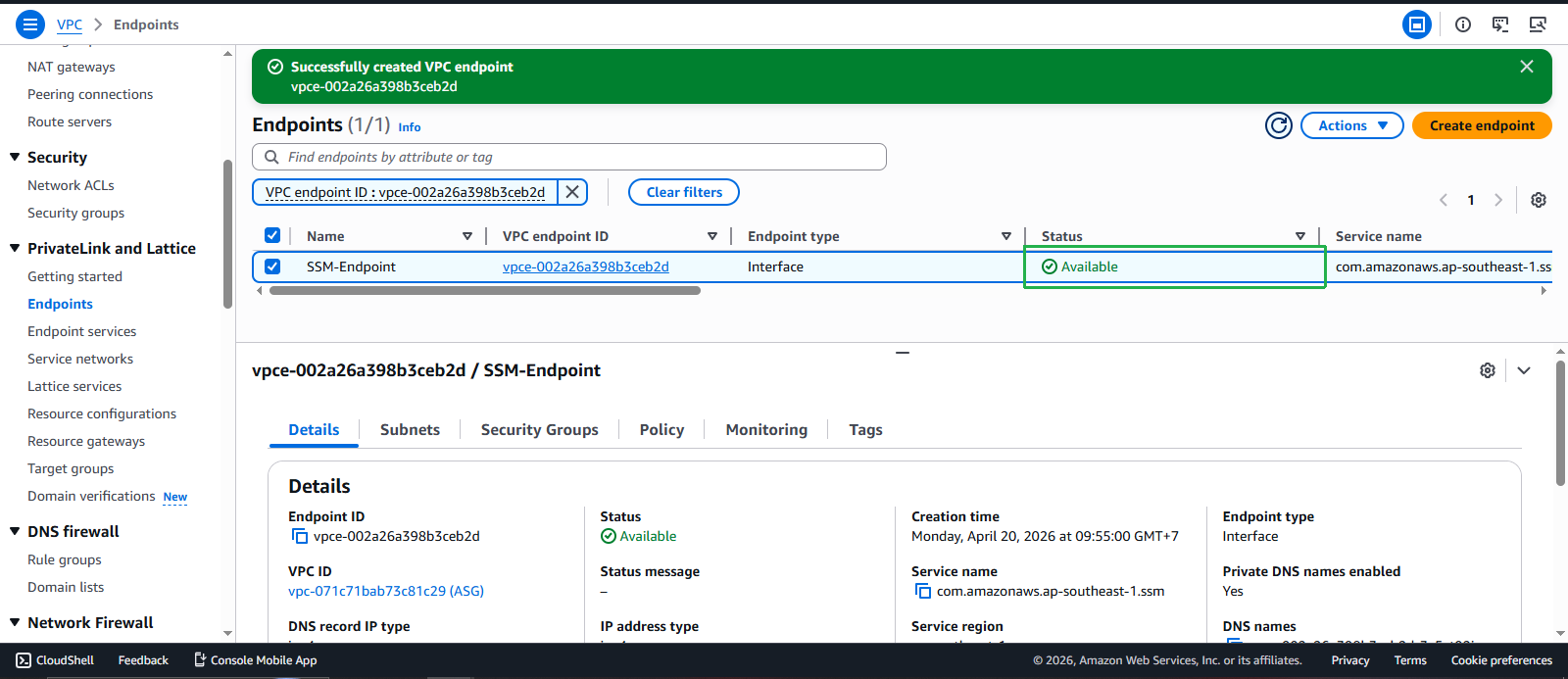

  • Security groups: Select VPC-Endpoints-SG
  • Policy: Select Full access (for this workshop)

Create VPC Create VPC Create VPC

  1. Configure additional required endpoints:

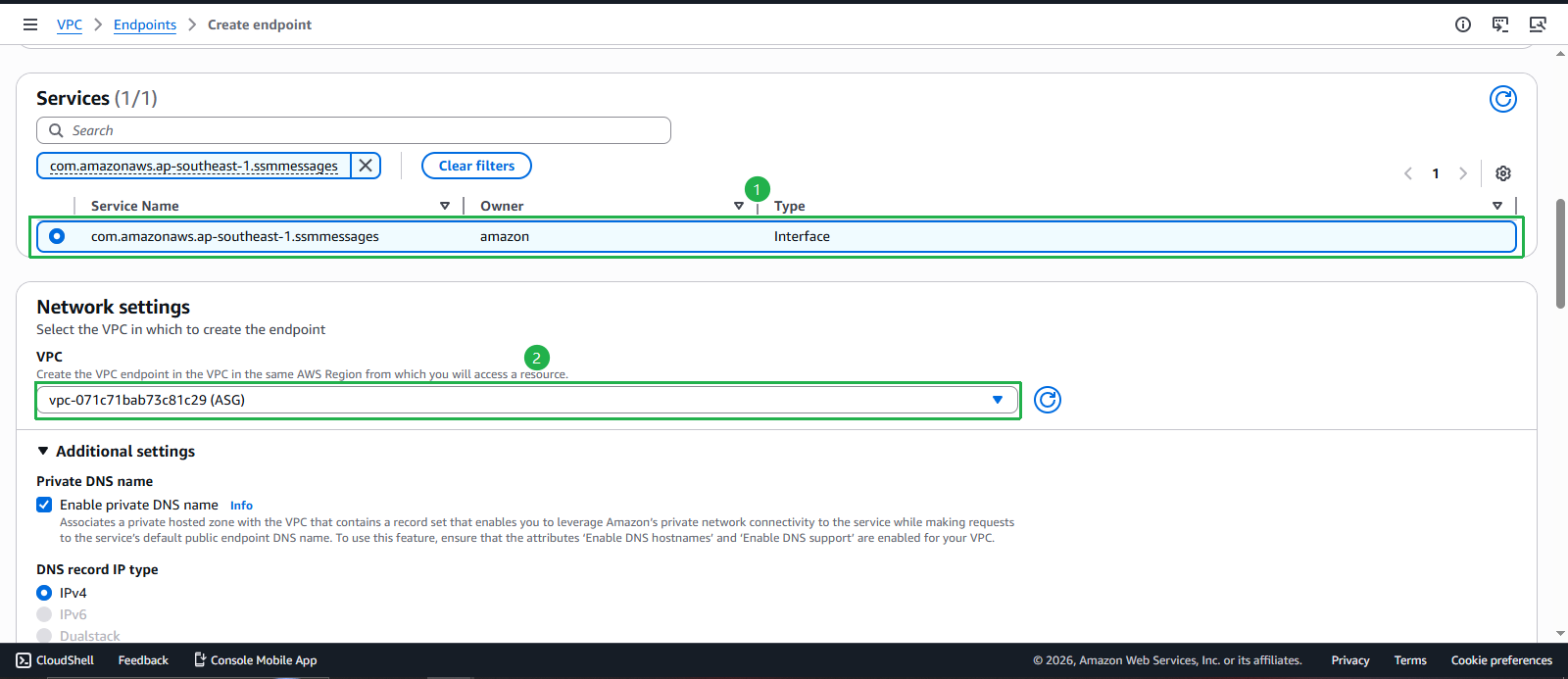

    • Create SSM Messages endpoint: com.amazonaws.ap-southeast-1.ssmmessages
    • Create EC2 Messages endpoint: com.amazonaws.ap-southeast-1.ec2messages
    • For each endpoint, use the same configuration:
      • VPC: Select your ASG VPC
      • Subnets: Select Private Subnet 1 and Private Subnet 2
      • Security groups: Select VPC-Endpoints-SG
      • Policy: Select Full access

Using Session Manager

  1. Access instances via Session Manager:
    • Navigate to Systems Manager console
    • Select Session Manager from the left navigation
    • Click Start session

Create VPC Create VPC

  1. Select target instance:
    • Choose your EC2 Public or EC2 Private instance
    • Click Start session

Create VPC

  1. Interactive shell session:
    • You now have a secure shell session without SSH keys
    • All commands are logged and auditable

Security Group Updates

💡 Security Group Optimization
With Session Manager configured, you can now remove SSH rules from your security groups:

Before (SSH required):
  Type: SSH (22)
  Source: My IP / Security Group reference

After (Session Manager):
  No inbound rules required for shell access
  Outbound HTTPS (443) to VPC endpoints

🔒 Production Security Benefits:

  • Zero Trust Access: No network-level access required
  • Audit Trail: All sessions logged to CloudTrail
  • Granular Permissions: IAM policies control access
  • Session Recording: Optional session recording for compliance

💰 Cost Benefits:

  • No Bastion Hosts: Eliminates EC2 costs for jump boxes
  • Reduced Data Transfer: Direct access reduces NAT Gateway usage
  • No SSH Key Management: Reduces operational overhead

⚡ Operational Benefits:

  • Browser-Based: No SSH client software required
  • Cross-Platform: Works on any device with web browser
  • Centralized Management: Single console for all access
  • Integration Ready: Works with existing IAM policies and roles
